INVERTERS

GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package. The third generation of the GivEnergy Hybrid inverter is a DC-coupled storage solutions which allows you to seamlessly integrate battery storage into PV systems. This Bundle Includes: 1 x GivEnergy Gen 3 5kW Hybrid Inverter 1 x GivEnergy 9.5kWh Battery 1 x GivEnergy Gem120CT Meter 1 x GivEnergy All-in-One to All-in-One Cable

Read more less

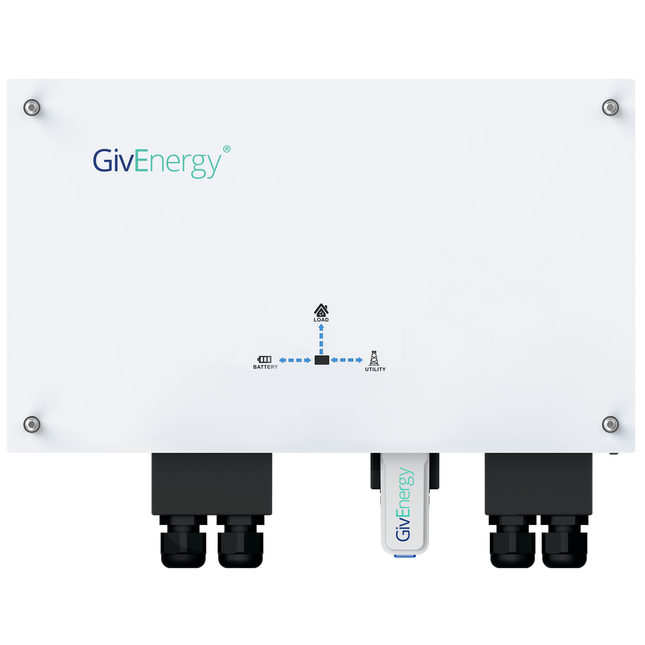

Part No: GIV-AC3.0 Storage Systems - Charger-Inverter The GivEnergy AC Charger will charge from surplus PV generation, and also from the grid if you're on an economy tariff. Wi-fi comes as standard and gives access to the powerful monitoring platform, along with remote, site-specific firmware upgrades and troubleshooting via web browser or app. System needs to be connected to the internet to comply with warranty requirements. Product Features Uses GivEnergy Lithium batteries that can be added to extend KWh of battery bank Installed to new builds or retrofitted to an existing solar pv system  Monitor usage through web-app interface Lightweight and compact Backup function supported Please Note: Givenergy online portal login is required to fully commission this system. If You do not already have a login, please contact GivEnergy before going to site to install! You need to attend GivEnergy Installers Training in order to install this product. Please check with GivEnergy for details.   If fitted by non-trained installer the Warranty will be VOID!  Givenergy system must be connected to the internet to benefit from full warranty services, please refer to GIV-WIFI-DONGLE or GIV-3G-DONGLE On Special Offer! GIV-AC3.0-9.5 GivEnergy 3.0kW AC Coupled inverter with 9.5kWh Battery Package (9.5kWh) Supplier Part No: GIV-AC3.0 Weight: 22.5 kg Rated Power: 3,000 W Data Sheet

Read more less

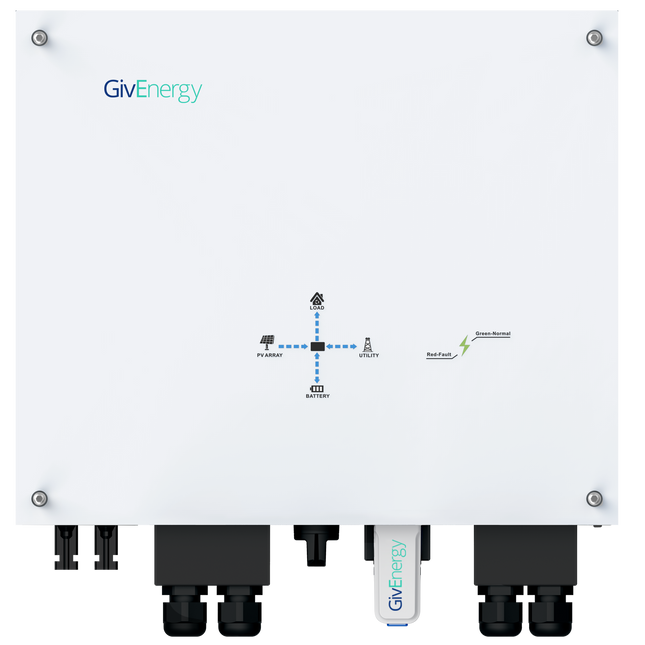

Part No: GIV-HY5.0 Storage Systems - Hybrid Inverter GivEnergy hybrid inverters is a must for every house hold where you have backup power during power outages as well as saving on your utility bill. This unique hybrid utilizes the free giving sunlight and makes it an flexible power source that is available when you need it as well as direct battery charge from your PV array. Product Features Uses GivEnergy Lithium batteries that can be added to extend KWh of battery bank Batteries can be charged from Solar PV as well as your current utility supply Cloud based monitoring and control through WEB APP interface Inverter can be remotely updated Via Wi-Fi /4G dongle Inverter do have 2500W backup power capability Available in 3.6KW and 5KW Inverter has 2 MPPT PV inputs that allow you to have solar panels in 2 different orientations Installations can be for new installs or retrofit to an existing system Backup function supported Please Note: Givenergy online portal login is required to fully commission this system. If You do not already have a login, please contact GivEnergy before going to site to install! You need to attend GivEnergy Installers Training in order to install this product. Please check with GivEnergy for details.   If fitted by non-trained installer the Warranty will be VOID!  Givenergy system must be connected to the internet to benefit from full warranty services, please refer to GIV-WIFI-DONGLE or GIV-3G-DONGLE   Supplier Part No: 5.0kW Hybrid inverter Weight: 33 kg Rated Power: 5,000 W Min PPT Voltage: 120 V Max PPT Voltage: 600 V DC Startup Voltage: 120 V DC Shutdown Voltage: 100 V Max Input Voltage: 600 V Max DC Power: 6,500 W Max AC Power (5 Minutes): 5,001 W Surge AC Power (1 Second): 5,002 W Max DC Current: 22 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 0 Euro Efficiency: 99.5 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: No Data Sheet Hybrid 3.6 -5

Read more less

GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package. The third generation of the GivEnergy Hybrid inverter is a DC-coupled storage solution which allows you to seamlessly integrate battery storage into PV systems. This Bundle Includes: 1 x GivEnergy Gen 3 3.6kW Hybrid Inverter 1 x GivEnergy 9.5kWh Battery 1 x GivEnergy Gem120CT Meter 1 x GivEnergy All-in-One to All-in-One Cable

Read more less

Part No: GIV-AC3.0-9.5 Storage Systems - Grid Backup Packages This package is made up of the following items: Weight: 133.38 kg Rated Power: 3,000 W Click Here For Specs  Part   1 x GIV-BAT9.5 GivEnergy Gen 2 9.5kWh Li-Ion Battery   1 x GIV-AC3.0 GivEnergy AC Coupled 3.0kW Battery Inverter   1 x GIV-EM115CT GivEnergy EM115 Single Phase Modbus Energy Meter with CT   1 x GIV-WIFI-DONGLE GivEnergy WiFi Dongle   1 x GIV-BAT-CAB-G1-G2 GivEnergy Battery cable for Gen 1 to Gen 2

Read more less

Part No: GIV-HY3.6 Storage Systems - Hybrid Inverter  GivEnergy hybrid inverters is a must for every house hold where you have backup power during power outages as well as saving on your utility bill. This unique hybrid utilizes the free giving sunlight and makes it an flexible power source that is available when you need it as well as direct battery charge from your PV array. System needs to be connected to the internet to comply with warranty requirements. Product Features Uses GivEnergy Lithium batteries that can be added to extend KWh of battery bank Batteries can be charged from Solar PV as well as your current utility supply Cloud based monitoring and control through WEB APP interface Inverter can be remotely updated Via Wi-Fi /4G dongle Inverter do have 2500W backup power capability Available in 3.6KW and 5KW Inverter has 2 MPPT PV inputs that allow you to have solar panels in 2 different orientations Installations can be for new installs or retrofit to an existing system Backup function supported Please Note: Givenergy online portal login is required to fully commission this system. If You do not already have a login, please contact GivEnergy before going to site to install! You need to attend GivEnergy Installers Training in order to install this product. Please check with GivEnergy for details.   If fitted by non-trained installer the Warranty will be VOID!  Givenergy system must be connected to the internet to benefit from full warranty services, please refer to GIV-WIFI-DONGLE or GIV-3G-DONGLE   Supplier Part No: 3.6kW Hybrid inverter Weight: 33 kg Rated Power: 3,600 W Min PPT Voltage: 120 V Max PPT Voltage: 600 V DC Startup Voltage: 120 V DC Shutdown Voltage: 100 V Max Input Voltage: 600 V Max DC Power: 4,500 W Max AC Power (5 Minutes): 3,679 W Surge AC Power (1 Second): 3,680 W Max DC Current: 22 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 0 Euro Efficiency: 99.5 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: No Data Sheet Hybrid 3.6 -5

Read more less

Part No: GIV-HY-3.6-G3 Storage Systems - Hybrid Inverter GivEnergy Hybrid Inverter 3.6kW Gen 3  The third generation of the GivEnergy Hybrid Inverter is a battery and solar inverter in one unit PLEASE NOTE: AN EARTH BONDING KIT IS REQUIRED WITH EVERY GEN 3 INVERTER. THIS IS NOT INCLUDED AND MUST BE ADDED SEPARATELY. It can be coupled directly with solar panels to generate usable electricity in the property as well as store any excess energy for later use in a battery. The Hybrid Inverter aims to minimise export by storing excess energy in the battery during generation hours. Additionally, it will minimise import by discharging to meet demand in the property Spec MPPT Range 120V - 550V Max. Short Circuit Current (per string) 20A Max. Input Current (per string) 15A MPPT Tracker / No. of Strings per MPPT Tracker 2/1 Features  In-built WiFi and LAN Higher Charge/Discharge Rate Flexible Rate Tarif 5 Year Warranty Supplier Part No: GIV-HY3.6 G3 Weight: 32 kg Rated Power: 3,600 W Min PPT Voltage: 120 V Max PPT Voltage: 580 V DC Startup Voltage: 150 V DC Shutdown Voltage: 150 V Max Input Voltage: 550 V Max DC Power: 7,500 W Max AC Power (5 Minutes): 3,600 W Surge AC Power (1 Second): 3,600 W Max DC Current: 30 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 0 Euro Efficiency: 97 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: No

Read more less

This package is made up of the following items: Part   1 x GIV-BAT9.5 GivEnergy Gen 2 9.5kWh Li-Ion Battery   1 x GIV-HY5.0 GivEnergy 5.0KW Hybrid inverter GEN 1   1 x GIV-EM115CT GivEnergy EM115 Single Phase Modbus Energy Meter with CT   1 x GIV-WIFI-DONGLE GivEnergy WiFi Dongle   1 x GIV-BAT-CAB-G1-G2 GivEnergy Battery cable for Gen 1 to Gen 2

Read more less

GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package. The third generation of the GivEnergy Hybrid inverter is a DC-coupled storage solutions which allows you to seamlessly integrate battery storage into PV systems. This Bundle Includes: 1 x GivEnergy Gen 3 5kW Hybrid Inverter 2 x GivEnergy 9.5kWh Battery 1 x GivEnergy Gem120CT Meter 2 x GivEnergy All-in-One to All-in-One Cable
