BATTERY STORAGE

Part No: HV11550-58-SLAVE-V2 Storage Systems - Li-ion Battery Pack   Solax Triple Power LFP Extension Battery (Slave)  HV11550-58   The perfect match to X1-Hybrid, X3-Hybrid and X1-AC, the SolaX Triple Power LFP battery is available as a Master Battery 5.8kWh and a Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.    Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).   Additional features: Scalable to 23.2kWh Up to 4kW charge/discharge High Voltage means thinner cables are required. Compact Design 90% Depth of discharge 6000 life cycles Easy installation – plug and play with all cables supplied   Triple Power LFP 5.8kWh Slave batteries can only be matched with LFP 5.8kWh Master batteries.  They are NOT compatible with Generation 1 or 2 BMS or Batteries!   Please note this is a HV11550-58 Extension (Slave) Battery only, it requires HV-T-BAT-H-58 Main Battery(Master) to work. Additionally; T58 Master V2 + T58 Slave V1 / T58 Slave V2 ==> works normal T58 Master V1 + T58 Slave V2 ==> works but considering the better performance and compatibility, suggest to use slave V1 if there is existing V1 Master installed. Supplier Part No: Triple Power 5.8kWh Slave V2 Weight: 72.2 kg Battery Type: Lithium Ion Nominal Energy: 5800 Wh Depth of discharge: 100.00 % Voltage: 115 V Continuous Discharge Rate (Normal Use): 2875 W Maximum Discharge Rate (5 Minutes): 4000 W Surge Discharge Rate (15 Seconds): 4000 W Maximum Charge Rate (5 Minutes): 4000 W Data Sheet Solax Battery Blue 5.8kWh EN

Read more less

Part No: HV-T-BAT-H-58-MASTER-V2 Storage Systems - Li-ion Battery Pack Solax Triple Power LFP Main Battery (Master)  T-BAT-H-58   The perfect match to X1-Hybrid, X3-Hybrid, and X1-AC, the SolaX Triple Power LFP battery is available as a Master Battery 5.8kWh and a Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.  Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).   Additional features: Scalable to 23.2kWh Up to 4kW charge/discharge High Voltage means thinner cables are required. Compact Design 90% Depth of discharge 6000 life cycles Easy installation – plug and play with all cables supplied Triple Power LFP 5.8kWh Slave batteries can only be matched with LFP 5.8kWh Master batteries.  They are NOT compatible with Generation 1 or 2 BMS or Batteries! Additionally; T58 Master V2 + T58 Slave V1 / T58 Slave V2 ==> works normal T58 Master V1 + T58 Slave V2 ==> works but considering the better performance and compatibility, suggest to use slave V1 if there is existing V1 Master installed. Supplier Part No: Triple Power 5.8kWh Master V2 Weight: 72.2 kg Battery Type: Lithium Ion Nominal Energy: 5800 Wh Depth of discharge: 100.00 % Voltage: 115 V Continuous Discharge Rate (Normal Use): 2875 W Maximum Discharge Rate (5 Minutes): 4000 W Surge Discharge Rate (15 Seconds): 4000 W Maximum Charge Rate (5 Minutes): 4000 W Data Sheet Solax Battery Blue 5.8kWh EN

Read more less

Part No: HV-58-3-17.6 Storage Systems - Li-ion Battery Pack  This part is made up of the following items: 2 x HV11550-58-SLAVE SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE   1 x HV-T-BAT-H-58-MASTER SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER   Weight: 218 kg Battery Type: Lithium Ion Nominal Energy: 17600 Wh Depth of discharge: 90.00 % Voltage: 345 V Continuous Discharge Rate (Normal Use): 8625 W Maximum Discharge Rate (5 Minutes): 3500 W Surge Discharge Rate (15 Seconds): 12000 W Maximum Charge Rate (5 Minutes): 3500 W Data Sheet

Read more less

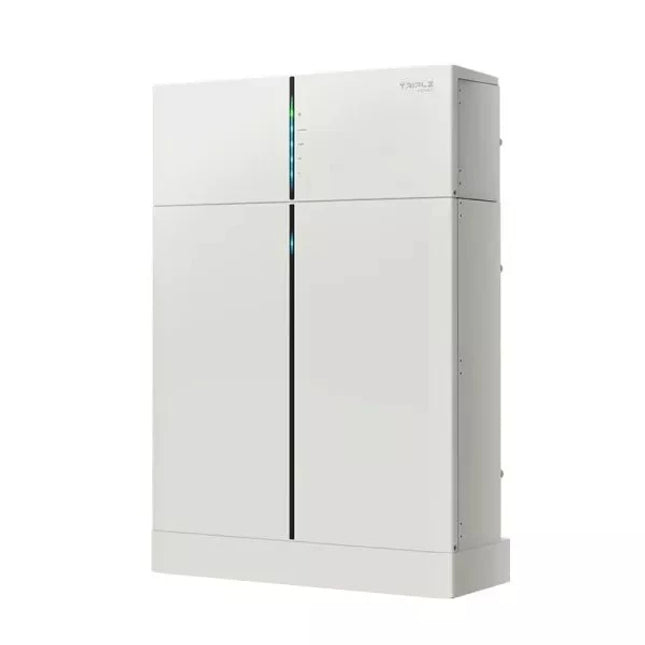

Part No: HV10230 Storage Systems - Li-ion Battery Pack Solax - HV10230 Triple Power 3.0 Battery Module   Please note: This is the Battery Module only - a BMS: MC0600 is required for this system to work. Battery BMS: MC0600 - One MC0600 can be connected to 1-4 HV10230 Triple Power 3.0 Battery modules  Safest LiFePO4 battery (30 Ah)  Working Temperature Range : -30 ~ 50 Smart temperature balancing cycle life > 6000 times  IP 65 Protection  Less Self Consulption  Quick Installation  MC0600 purchased separately.  Supplier Part No: Triple Power X-ESS 3kWh Weight: 34.5 kg Battery Type: Lithium Ion Nominal Energy: 2500 Wh Depth of discharge: 90.00 % Voltage: 102 V Continuous Discharge Rate (Normal Use): 3072 W Maximum Discharge Rate (5 Minutes): 3072 W Surge Discharge Rate (15 Seconds) 3100 W Maximum Charge Rate (5 Minutes): 3072 W

Read more less

Part No: HV-58-2-11.6 Storage Systems - Li-ion Battery Pack  This part is made up of the following items: 1 x HV-T-BAT-H-58-MASTER SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER   1 x HV11550-58-SLAVE SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE Weight: 149.5 kg Battery Type: Lithium Ion Nominal Energy: 11600 Wh Depth of discharge: 90.00 % Voltage: 230 V Continuous Discharge Rate (Normal Use): 5750 W Maximum Discharge Rate (5 Minutes): 3500 W Surge Discharge Rate (15 Seconds): 8000 W Maximum Charge Rate (5 Minutes): 3500 W Click Here For Specs

Read more less

Part No: HV-58-4-23.2 Storage Systems - Li-ion Battery Pack  This part is made up of the following items: 3 x HV11550-58-SLAVE SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE   1 x HV-T-BAT-H-58-MASTER SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER   Weight: 286.5 kg Battery Type: Lithium Ion Nominal Energy: 23200 Wh Depth of discharge: 90.00 % Voltage: 460 V Continuous Discharge Rate (Normal Use): 1150 W Maximum Discharge Rate (5 Minutes): 3500 W Surge Discharge Rate (15 Seconds): 16000 W Maximum Charge Rate (5 Minutes): 3500 W Data Sheet

Read more less
