INVERTERS

CLICK HERE FOR SPEC SHEETS   Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.   Features A Quattro, plus ESS (Energy Storage System) functionality The Quattro-II can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro-II will automatically connect to the active source. PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The Quattro-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Quattro-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The Quattro-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters. Two AC Outputs The main output has no break functionality. The Quattro-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Parallel and three phase operation Up to 6 Quatros can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output, and up to 6 sets of three units can be parallel connected per phase for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity. On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel. Remote configuring and monitoring Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Brand Victron Energy Manufacturer Part Number QUA482504010 GTIN 8719076054092 Voltage 48V Cont. output power at 25ºC 5000VA Peak Power 9000W Output AC Voltage 230V Transfer Switch 50A Max. AC Input Current 50A Max. Battery Charge Current 70A Protection Category IP22 Efficiency 96% Bluetooth Compatible Yes Dimensions H560 x W328 x D148mm Weight 30Kg Warranty 5 Years

Read more less

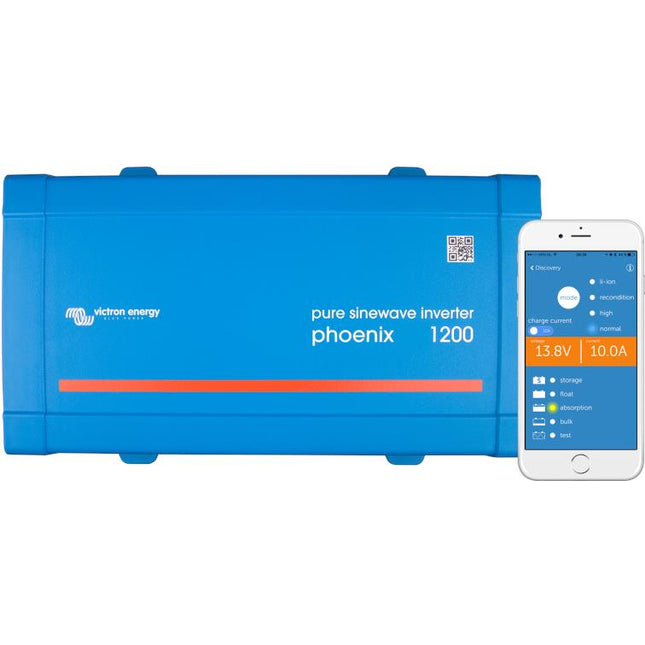

Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.   Features VE.Direct communication port The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage 210 – 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage, % load and alarms Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/off A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector. DC connection with screw terminals No special tools needed for installation. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PIN482120400 Voltage 48 VA 1200 Peak Power (W) 2200 Max Efficiency 92% Plug Type UK IP Rating IP21 Dimensions (Including Terminals) H117 x W232 x D327mm Weight (kg) 7.4 Warranty 5 Years

Read more less

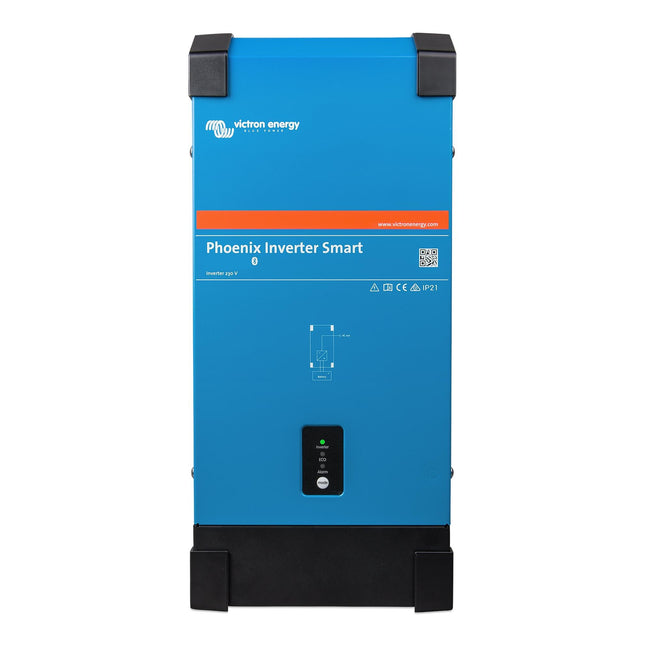

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems.It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.   Features Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PIN122300000 Voltage 12 VA 3000 Peak Power (VA) 6000 Max Efficiency 93% IP Rating IP22 Dimensions (Including Terminals) H533 x W285 x D150mm Weight (kg) 19 Warranty 5 Years

Read more less

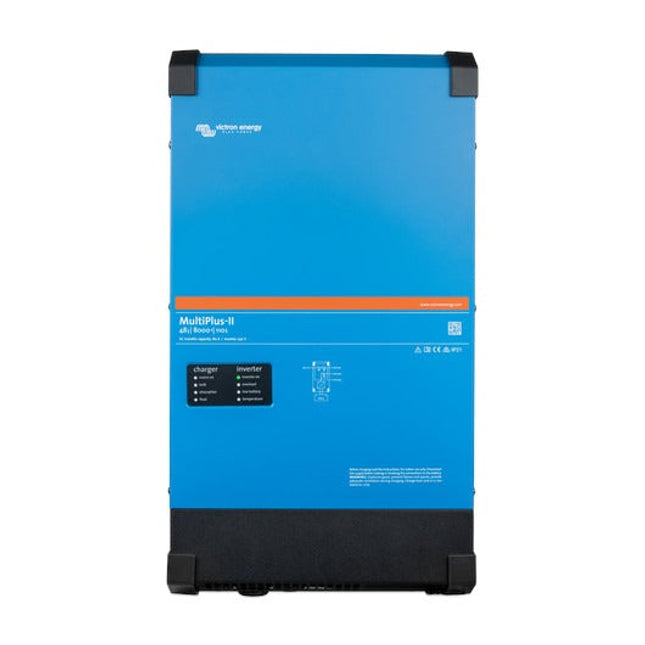

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.   Features A MultiPlus, plus ESS (Energy Storage System) functionality The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.   PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.   Solar energy: AC power available even during a grid failure The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.   Two AC Outputs The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.   Virtually unlimited power thanks to parallel and three phase operation (not available for the 8k and 10k models) Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.   On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.   Remote configuring and monitoring Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PMP482805000 GTIN 8719076050568 Voltage 48V Cont. Output Power at 25°C 8000VA Peak Power 15000W Output AC Voltage 230V Transfer Switch 100A Max. AC Input Current 100A Max. Battery Charge Current 110A Protection Category IP22 Efficiency 95% Bluetooth Compatible Yes Dimensions H642 x W363 x D206mm Weight 42Kg Warranty 5 Years

Read more less

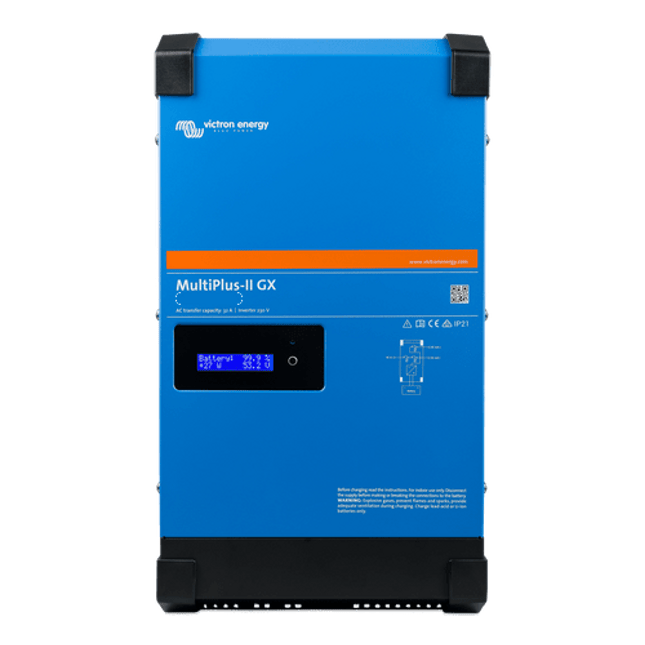

CLICK HERE FOR SPEC SHEETS   An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.   Features A MultiPlus-II with LCD and GX functionality The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display. Display and Wi-Fi The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. GX device The integrated GX device includes: A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery. A USB port. A Ethernet port. A VE.Direct port. Applications The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Parallel and three phase operation Only one GX unit is needed in case of Parallel and three phase operation Brand Victron Energy Manufacturer Part Number PMP482506000 Voltage 48 Transfer Switch (A) 50 Cont. Output Power at 25°C 5000VA Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H506 x W275 x D147mm Weight (kg) 26 Warranty 5 Years Country of Manufacture India

Read more less

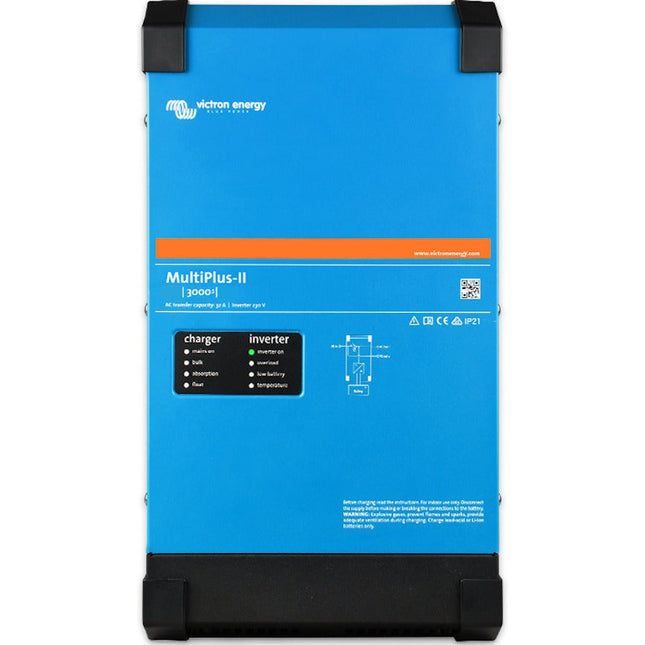

CLICK HERE FOR SPEC SHEETS   The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.   Features PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters. Two AC Outputs The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel and three phase operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity. On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel. Remote configuring and monitoring Install a Color Control GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Brand Victron Energy Manufacturer Part Number PMP242305010 Voltage 24 Transfer Switch (A) 32 Cont. Output Power at 25°C (VA) 3000 Peak Power (W) 5500 Max Efficiency 95% Zero Load Power (W) 11 Charge Current House Battery (A) 70 Charge Current Starter Battery (A) 4 Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes, 2 pole Protection Category IP22 Dimensions H506 x W275 x D147mm Weight (kg) 18 Warranty 5 Years Country of Manufacture China

Read more less

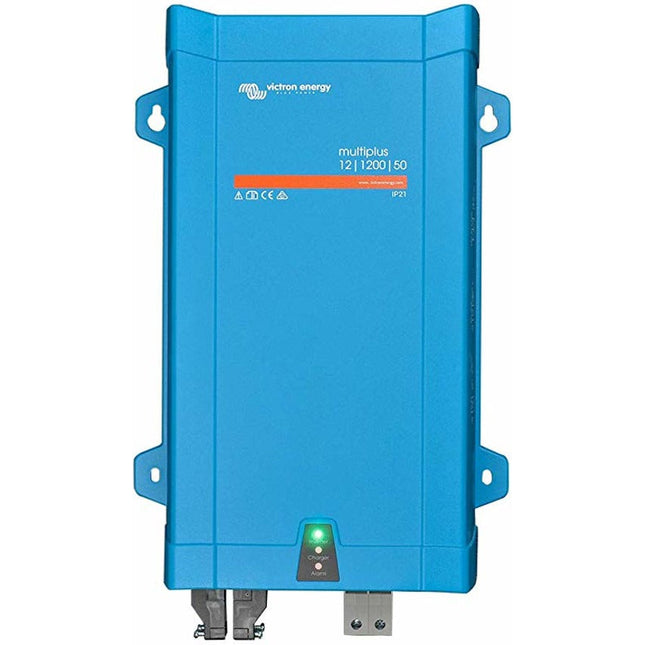

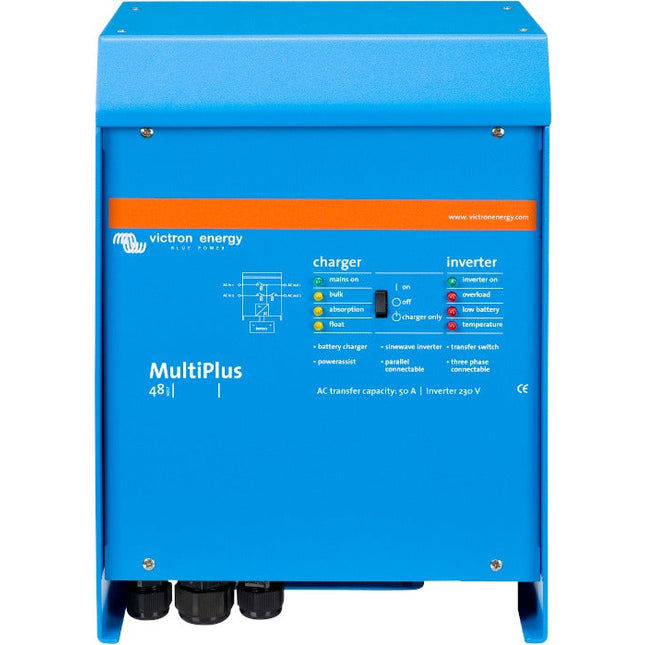

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.   Features Two AC Outputs The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more). Virtually unlimited power thanks to parallel operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity. Three phase capability In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity. PowerControl – Dealing with limited generator, shore side or grid power The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available. System configuring In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PMP485021010 Voltage 48 Transfer Switch (A) 100 Cont. Output Power at 25°C (VA) 5000 Peak Power (W) 10000 Max Efficiency 95% Zero Load Power (W) 35 Charge Current House Battery (A) 70 Charge Current Starter Battery (A) 4 (12 V and 24 V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H444 x W328 x D240mm Weight (kg) 30 Warranty 5 Years Country of Manufacture India

Read more less

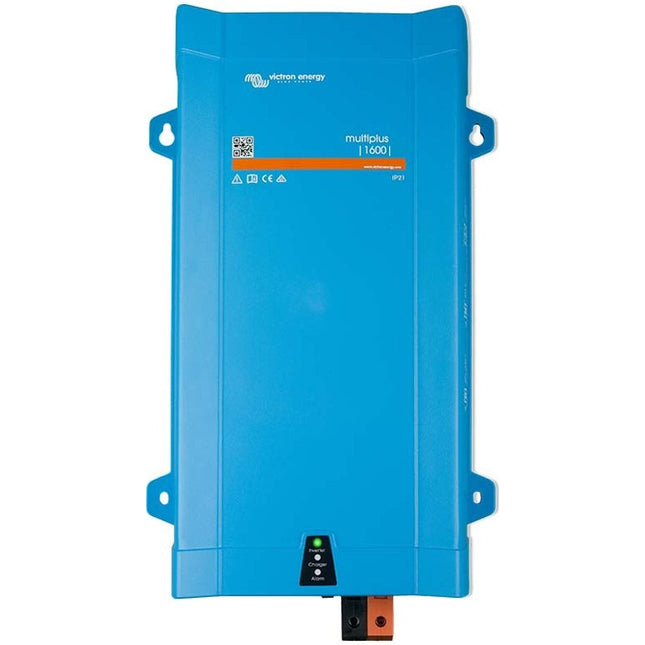

CLICK HERE FOR SPEC SHEETS   The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.   Features Uninterrupted AC power (UPS function) In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption Remote Monitoring and Control Monitor and control your MultiPlus and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more… Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  PowerControl – Dealing with limited generator, shore side or grid power With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low). Brand Victron Energy Manufacturer Part Number PMP482160000 Voltage 48 Transfer Switch (A) 16 Cont. Output Power at 25°C (VA) 1600 Peak Power (W) 2800 Max Efficiency 95% Zero Load Power (W) 10 Charge Current House Battery (A) 20 Charge Current Starter Battery (A) 1 (12V and 24V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off On/off Protection Category IP21 Dimensions H470 x W265 x D120mm Weight (kg) 10.2 Warranty 5 Years Country of Manufacture India

Read more less

CLICK HERE FOR SPEC SHEETS The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.   Features Uninterrupted AC power (UPS function) In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption Remote Monitoring and Control Monitor and control your MultiPlus and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more… Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  PowerControl – Dealing with limited generator, shore side or grid power With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).   Brand Victron Energy Manufacturer Part Number PMP122120000 Voltage 12V Transfer Switch (A) 16A Cont. Output Power at 25°C (VA) 1200 Peak Power (W) 2400 Max Efficiency 93% Zero Load Power (W) 10 Charge Current House Battery (A) 50 Charge Current Starter Battery (A) 1A(12V and 24V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off On/off/charger only Protection Category IP21 Dimensions H406 x W250 x D100mm Weight (kg) 8.2 Warranty 5 Years Country of Manufacture China

Read more less
