INVERTERS

Part No: GROWATT-MIN5000-TL-X-DC Inverters - Main Units Rating: 5,000W Phases: 1 Growatt inverters are designed for specifically for residential rooftop applications. With a maximum efficiency of 98% and wide input voltage range, this robust inverter is perfect for most domestic installs Leading - edge Technology ·       Double MPPT Tracker, MPPT tracking accuracy more than 99.5% ·       Max. Efficiency 98%, European Efficiency 97% ·       Transformerless design and high power density, offer lighter and ·       more convenient installation ·       Comes with10 years warranty ·       Power factor continuously adjustable ·       Flexible communication connection ·       Comply with European, Asia-Pacific safety regulations   Built in DC isolator.    Supplier Part No: MIN5000 TL X DC Weight: 10.8 kg Rated Power: 5,000 W Min PPT Voltage: 100 V Max PPT Voltage: 550 V DC Startup Voltage: 100 V DC Shutdown Voltage: 80 V Max Input Voltage: 550 V Max DC Power: 7,000 W Max AC Power (5 Minutes): 5,000 W Surge AC Power (1 Second): 5,000 W Max DC Current: 27 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: Amphenol H4   Included Connectors: 2 Euro Efficiency: 97.5 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 10 years

Read more less

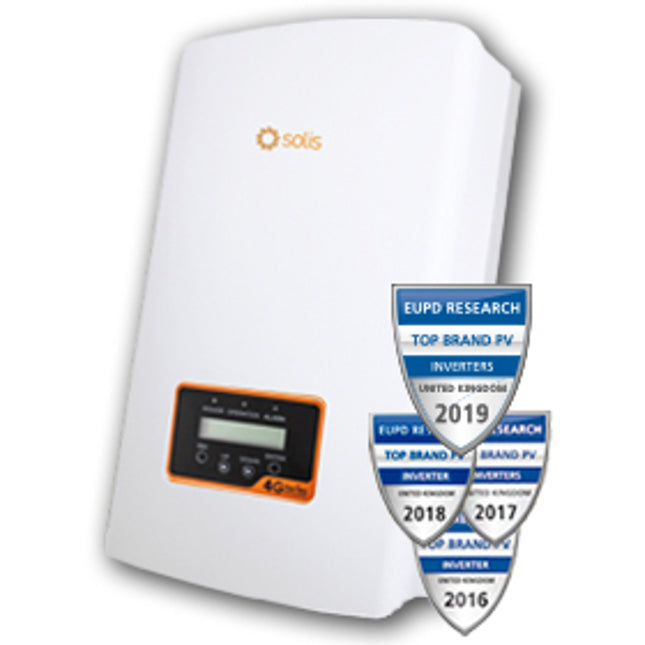

Part No: SOL-4.6-4G-DT-DC Inverters - Main Units Rating: 4,600W Phases: 1    Solis 4G  Muti-working mode fully compatible with new AS4777.2:2015 standard  Easy installation: Integrate with export power control function and DRM function.  Max. Efficiency over 97.8% MPPT efficiency over 99.5%  Ultra wide input voltage range  Dual MPPT design with precise MPPT algorithm  Compact and light design for one-person easy installation  IP65 visually pleasing for domestic environment  RS 485WiFi/GPRS(optional)interface  Numerous protection functions  WiFi and monitoring app available  High switching frequency design to be more reliable and efficient.  Ultra low harmonic THDi<1.5%  Export Limitation built in - Requires CT clamp (sold separately) - NOW G100 COMPLIANT

Read more less

Part No: SOL-3.6-5G-DT-DC Inverters - Main Units Rating: 3,600W Phases: 1 Solis 5G is the 5th generation of inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.  Product Features   Muti-working mode fully compatible with new AS4777.2:2015 standard   Easy installation: Integrate with export power control function and DRM function.   Max. Efficiency over 97.8% European efficiency over 97.1%   Ultra wide input voltage range   Dual MPPT design with precise MPPT algorithm   Maximum string input current 12.5A   Export Limitation built in - Requires CT clamp (sold separately)    Integrated AFCI (DC arc-fault circuit protection) With built in DC switch.    Supplier Part No: S5-GR1P3.6K-DC Weight: 11.5 kg Rated Power: 3,600 W Min PPT Voltage: 90 V Max PPT Voltage: 520 V DC Startup Voltage: 120 V DC Shutdown Voltage: 90 V Max Input Voltage: 600 V Max DC Power: 4,200 W Max AC Power (5 Minutes): 3,680 W Surge AC Power (1 Second): 3,680 W Max DC Current: 25 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 2 Euro Efficiency: 97.1 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

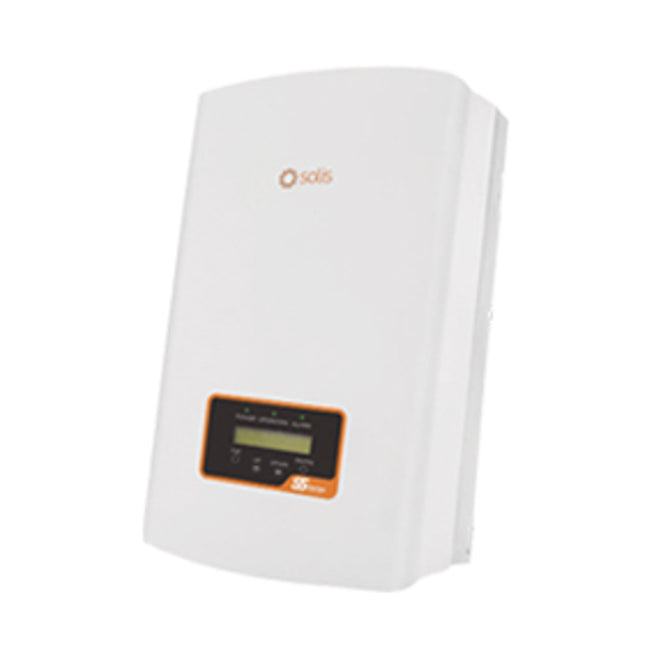

Part No: SOL-3.0-5G-DT-DC Inverters - Main Units Rating: 3,000W Phases: 1 Solis 5G is the 5th generation of inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.  Product Features   Muti-working mode fully compatible with new AS4777.2:2015 standard   Easy installation: Integrate with export power control function and DRM function.   Max. Efficiency over 97.8% European efficiency over 97.1%   Ultra wide input voltage range   Dual MPPT design with precise MPPT algorithm   Maximum string input current 12.5A   Export Limitation built in - Requires CT clamp (sold separately)   Integrated AFCI (DC arc-fault circuit protection) With built in DC switch.    Supplier Part No: S5-GR1P3K-DC Weight: 11.5 kg Rated Power: 3,000 W Min PPT Voltage: 90 V Max PPT Voltage: 520 V DC Startup Voltage: 120 V DC Shutdown Voltage: 90 V Max Input Voltage: 600 V Max DC Power: 3,500 W Max AC Power (5 Minutes): 3,300 W Surge AC Power (1 Second): 3,300 W Max DC Current: 25 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 2 Euro Efficiency: 97.1 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

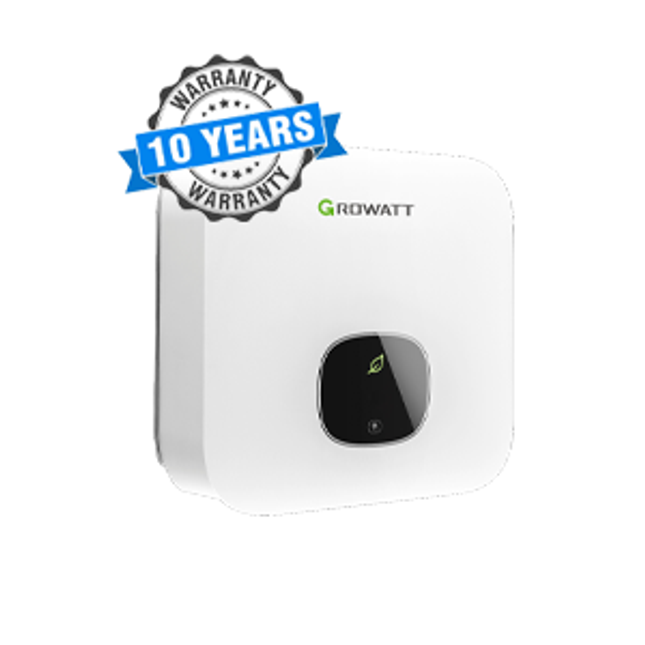

Part No: GROWATT-MIN3000-TL-X-DC Inverters - Main Units Rating: 3,000W Phases: 1 Growatt inverters are designed for specifically for residential rooftop applications. With a maximum efficiency of 98% and wide input voltage range, this robust inverter is perfect for most domestic installs Leading - edge Technology ·       Double MPPT Tracker, MPPT tracking accuracy more than 99.5% ·       Max. Efficiency 98%, European Efficiency 97% ·       Transformerless design and high power density, offer lighter and ·       more convenient installation ·       Comes with10 years warranty ·       Power factor continuously adjustable ·       Flexible communication connection ·       Comply with European, Asia-Pacific safety regulations   Built in DC isolator.  UK only: This inverter has been tested and certified according to G99, but only for units having most recent Firmware and Hardware version. Please check if the unit you are purchasing meets that criteria and if in doubt, please update the inverter firmware.   Supplier Part No: MIN3000 TL X DC Weight: 10.8 kg Rated Power: 3,000 W Min PPT Voltage: 100 V Max PPT Voltage: 500 V DC Startup Voltage: 100 V DC Shutdown Voltage: 80 V Max Input Voltage: 500 V Max DC Power: 4,200 W Max AC Power (5 Minutes): 3,000 W Surge AC Power (1 Second): 3,000 W Max DC Current: 27 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: Amphenol H4   Included Connectors: 2 Euro Efficiency: 97.1 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 10 years

Read more less

Part No: SOL-2.5-MINI-5G Inverters - Main Units Rating: 2,500W Phases: 1 All new Solis Mini 5G Series Grid-tie Inverter  Ultra low Startup Voltage  - 90V   High switch frequency technology-Smaller, smarter   DRM integrated fully comply with AS47772:2015   Compact and lightweight visually pleasing for domestic environment   5 years standard warranty 20 years optional upgrade   Export Limitation built in - Requires CT clamp (sold separately)   Integrated AFCI (DC arc-fault circuit protection)   Supplier Part No: S5-GR1P2.5K-M Weight: 9 kg Rated Power: 2,500 W Min PPT Voltage: 80 V Max PPT Voltage: 500 V DC Startup Voltage: 90 V DC Shutdown Voltage: 80 V Max Input Voltage: 600 V Max DC Power: 3,000 W Max AC Power (5 Minutes): 2,800 W Surge AC Power (1 Second): 2,800 W Max DC Current: 12.5 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4   Included Connectors: 1 Euro Efficiency: 96.8 % Transformer: None IP Rating: IP65MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 5 years

Read more less

Part No: SOL-1.0-MINI-5G Inverters - Main Units Rating: 1,000W Phases: 1 All new Solis Mini 5G Series Grid-tie Inverter  Ultra low Startup Voltage  - 60V   High switch frequency technology-Smaller, smarter   DRM integrated fully comply with AS47772:2015   5 years standard warranty 20 years optional upgrade   Export Limitation built in - Requires CT clamp (sold separately)   Integrated AFCI (DC arc-fault circuit protection)   Supplier Part No: S5-GR1P1K-M Weight: 8.2 kg Rated Power: 1,000 W Min PPT Voltage: 50 V Max PPT Voltage: 500 V DC Startup Voltage: 60 V DC Shutdown Voltage: 50 V Max Input Voltage: 600 V Max DC Power: 1,200 W Max AC Power (5 Minutes): 1,100 W Surge AC Power (1 Second): 1,100 W Max DC Current: 12.5 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4   Included Connectors: 1 Euro Efficiency: 96.5 % Transformer: None MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 5 years

Read more less

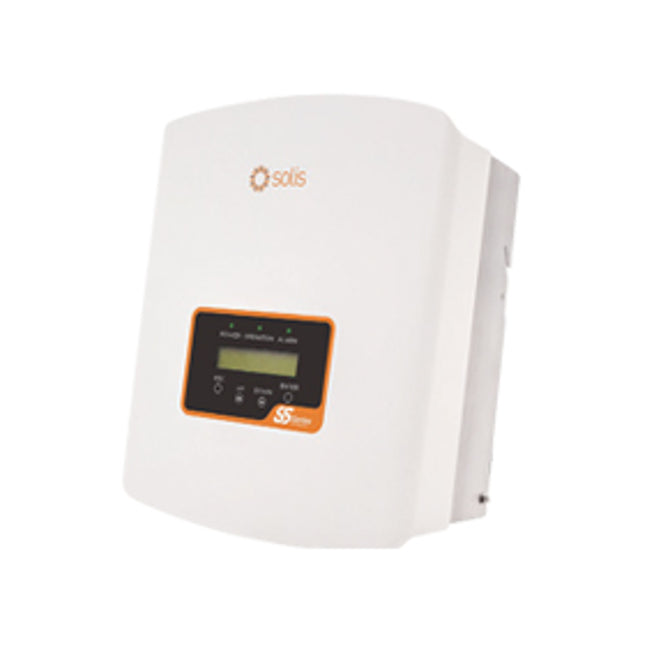

Part No: SOL-0.7-MINI-5G Inverters - Main Units Rating: 700W Phases: 1 All new Solis Mini 5G Series Grid-tie Inverter  Ultra low Startup Voltage  - 60V   High switch frequency technology-Smaller, smarter   DRM integrated fully comply with AS47772:2015   Compact and lightweight visually pleasing for domestic environment   5 years standard warranty 20 years optional upgrade   Export Limitation built in - Requires CT clamp (sold separately)   Integrated AFCI (DC arc-fault circuit protection) NOTE: for SA customers, warranty extension is currently available for up to 10 years only   Supplier Part No: S5-GR1P0.7K-M Weight: 8.5 kg Rated Power: 700 W Min PPT Voltage: 50 V Max PPT Voltage: 500 V DC Startup Voltage: 60 V DC Shutdown Voltage: 50 V Max Input Voltage: 600 V Max DC Power: 900 W Max AC Power (5 Minutes): 800 W Surge AC Power (1 Second): 800 W Max DC Current: 12.5 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4   Included Connectors: 1 Euro Efficiency: 96.5 % Transformer: None IP Rating: IP65MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 5 years

Read more less
