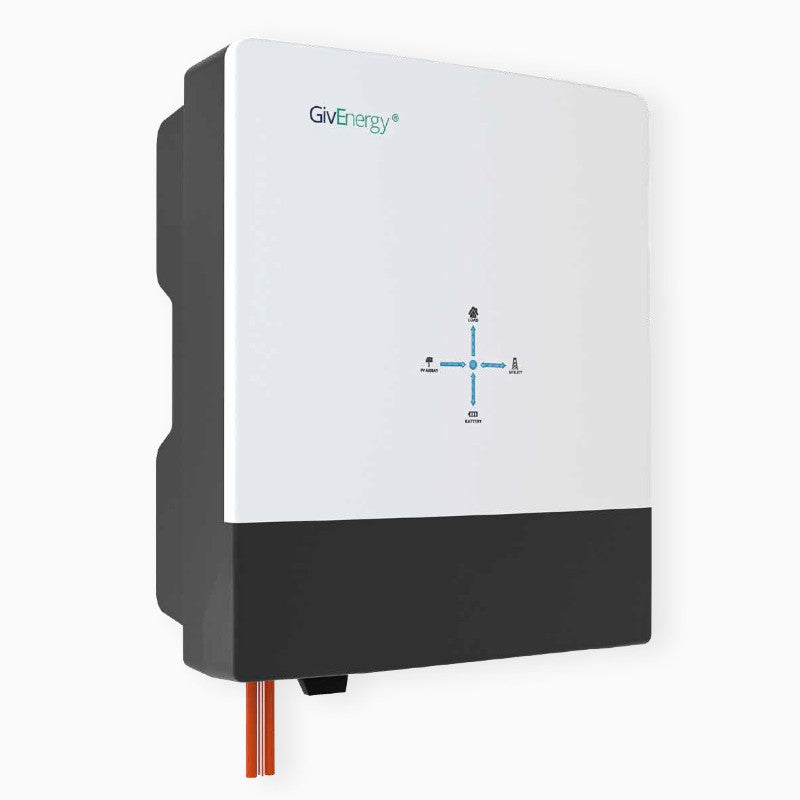

GivEnergy Hybrid Inverter 3.6kW Gen 3
The third generation of the GivEnergy Hybrid Inverter is a battery and solar inverter in one unit
PLEASE NOTE: AN EARTH BONDING KIT IS REQUIRED WITH EVERY GEN 3 INVERTER. THIS IS NOT INCLUDED AND MUST BE ADDED SEPARATELY.
It can be coupled directly with solar panels to generate usable electricity in the property as well as store any excess energy for later use in a battery. The Hybrid Inverter aims to minimise export by storing excess energy in the battery during generation hours. Additionally, it will minimise import by discharging to meet demand in the property
Spec
- MPPT Range 120V - 550V
- Max. Short Circuit Current (per string) 20A
- Max. Input Current (per string) 15A
- MPPT Tracker / No. of Strings per MPPT Tracker 2/1
Features
- In-built WiFi and LAN
- Higher Charge/Discharge Rate
- Flexible Rate Tarif
- 5 Year Warranty
- Supplier Part No:
- GIV-HY3.6 G3
- Weight:
- 32 kg
- Rated Power:
- 3,600 W
- Min PPT Voltage:
- 120 V
- Max PPT Voltage:
- 580 V
- DC Startup Voltage:
- 150 V
- DC Shutdown Voltage:
- 150 V
- Max Input Voltage:
- 550 V
- Max DC Power:
- 7,500 W
- Max AC Power (5 Minutes):
- 3,600 W
- Surge AC Power (1 Second):
- 3,600 W
- Max DC Current:
- 30 A
- Max DC Inputs:
- 2
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 0
- Euro Efficiency:
- 97 %
- Transformer:
- None
- MPPT Quantity :
- 2
- Has Integrated DC Switch:
- No
