Part No: SOL-8.0-5G-DT-DC Inverters - Main Units Rating: 8,000W Phases: 1    7-8kW 5G Single Phase Inverter Leading Features Over 98.1% Max. efficiency Friendly and adaptable connection to the grid Support 1.1 times overload, increase power generation IP65 protection grade, suitable for outdoor installation RS485, WiFi/LAN/GPRS (optional) interface Light weight 13.3 kg, Single-person maintainable installation WiFi monitoring available-Android and Apple App store available   Please note this inverter has two MPP trackers, each with different maximum allowed DC Current! MPP Tracker A is limited to 12.5A and should only have single string connected to it, MPP tracker B can have two strings connected to it with maximum current up to 25A.   Data Sheet Solis 1PH 5G 8K Supplier Part No: SOLIS-8.0-5G-DT-DC Weight: 13.3 kg Rated Power: 8,000 W Min PPT Voltage: 90 V Max PPT Voltage: 520 V DC Startup Voltage: 120 V DC Shutdown Voltage: 90 V Max Input Voltage: 600 V Max DC Power: 10,400 W Max AC Power (5 Minutes): 8,000 W Surge AC Power (1 Second): 8,000 W Max DC Current: 37.5 A Max DC Inputs: 3 Has DC Fuses: 0 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97.3 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

• Scalable from 3.8 kWh to 245.8 kWh• Maximum Flexibility for any Application with up to 64 Modules Connected in Parallel• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power• Capable of High-Powered Emergency-Backup and Off-Grid Function• Patented Internal Plug Design Requires No Additional Wiring• Self-Consumption Optimization for Residential and Commercial Applications Click Here For Spec Sheets

Read more less

• Scalable from 15.4 to 983 kWh• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power• Capable of High-Powered Back-up and Off-Grid Function• Space Saving via the Ability to Stack 2 Premium Batteries• Add Additional Batteries in Parallel to Expand the System Click Here For Spec Sheets

Read more less

The capacities of the combinable batteries range from 5.1-10.2 kWh (HVS). Like its predecessors, the Battery-Box Premium HVS is based on lithium iron phosphate, one of the most reliable storage technologies. The battery has a modular structure and can be expanded in steps of 2.6 kWh (HVS). This means that there is nothing to prevent the storage being expanded at a later date. The floor mounting means that the installation and commissioning process can again be carried out quickly and easily. Click Here For Spec Sheet

Read more less

Capable of High-Powered Emergency-Backup and Off-Grid Functionality. Highest Efficiency Thanks to a Real High-Voltage Series Connection The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters Two Distinct Modules to Cover the Complete Range of System Sizes Highest Safety Standards like VDE 2510-50  Click Here For Spec Sheets

Read more less

BYD Battery Box Premium HVM/HVS Battery Base and Control UnitSKU: BYD-HV-BCU The BYD HVM/HVS range is built up using the control unit and base then adding multiple batteries to the system, this product consists of the PDU and base. 1pcs is required per system BYD Battery Box Premium HVS 2.56kWh Lithium BatterySKU: BYD-HVS-2.56 (x2) In the high voltage versions of the BYD Battery-Box Premium Line, a differentiation is made between the smaller HVS and the larger HVM. The capacities of the combinable batteries range from 5.1-10.2 kWh (HVS). Like its predecessors, the Battery-Box Premium HVS is based on lithium iron phosphate, one of the most reliable storage technologies. The battery has a modular structure and can be expanded in steps of 2.6 kWh (HVS). This means that there is nothing to prevent the storage being expanded at a later date. The floor mounting means that the installation and commissioning process can again be carried out quickly and easily.   Click Here For Spec Sheets

Read more less

The BMU is equipped with a WLAN interface as a standard. Special tools BYD developed could communicate with BMU through it. IP55 rated and to be used with BYD LVS battery systems.

Read more less

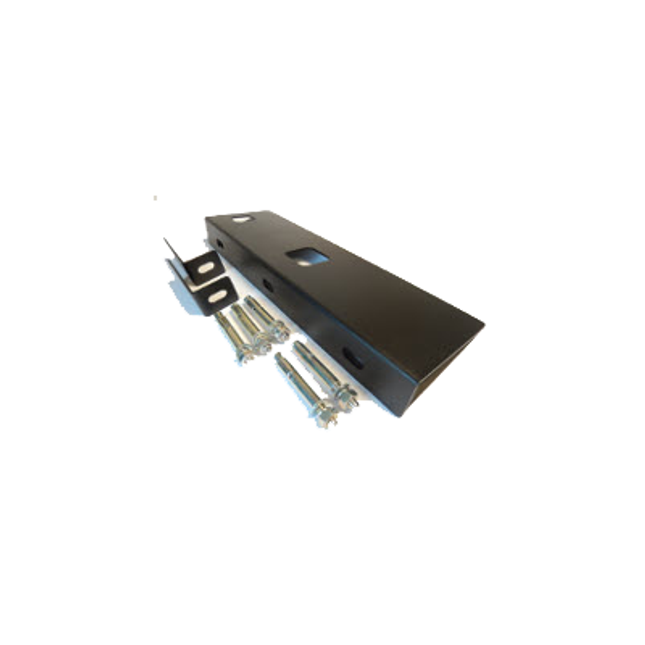

Wall mounting bracket and cover for the BYD B-Box 2.5 Click Here For Specs

Read more less

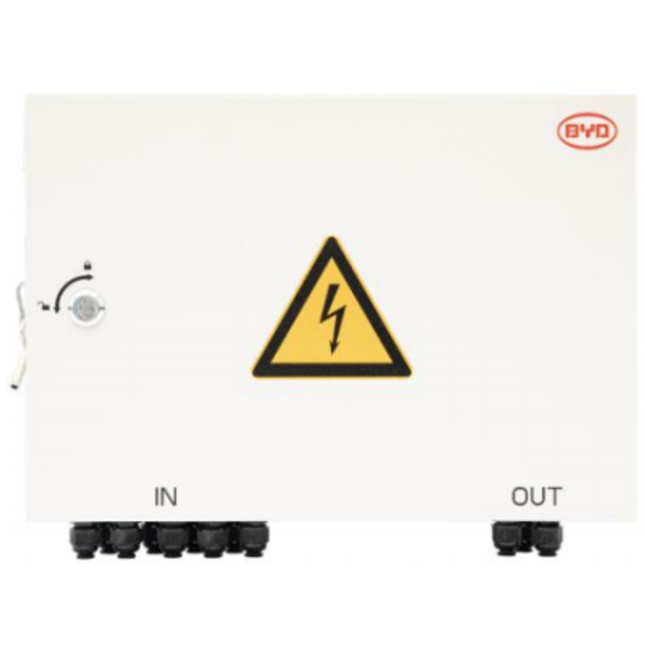

We are happy to announce that the combiner box for BYD Battery-Box Premium HVS & HVM is ready for ordering. Use the Premium HV Combiner Box for the parallel connection of 2 or 3 Battery-Box Premium  HVS/HVM Towers, it provides a simple and safe solution for the DC cabling connections. All corresponding documents can be found in the download center, please find the necessary information to  assist the installation and configuration. Please check BYD BATTERY-BOX PREMIUM HVS&HVM COMPATIBLE INVERTER LIST – V2.2 before  installation and make sure the planned configuration meets the Premium HV Compatible Inverter List by BYD and the Towers have the same module quantity. Click Here For Specs

Read more less

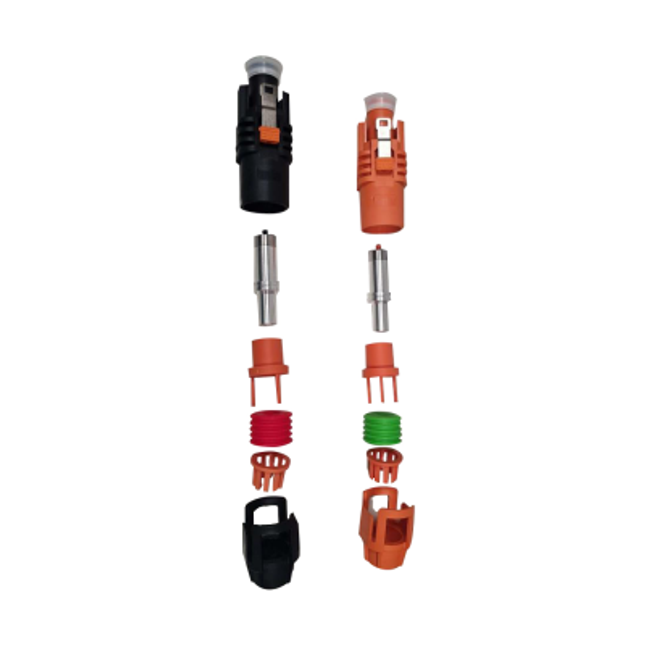

DC Connector for 50mm² Cable

Read more less

DC Connector for 50mm² Cable

Read more less

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us. Part No: JKM415N-54HL4-B-JK03M Panels - Monocrystallines Rating: 415W Efficiency: 21.3% Width: 1,134mm Height: 1,722mm Tiger Neo N-type 54HL4-B 415 Watt Better light trapping and current collection to improve module power output and reliability. The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). Durability Against Extreme Environmental Conditions, High salt mist and ammonia resistance. 25 Year Product Warranty 30 Year Linear Power Warranty Dimensions: 1722×1134×30mm  Supplier Part No: JKM415N-54HL4-B-JK03MWeight: 22 kgRated Power: 415 WMCS Reference: MCS PV0163/4756Length: 1,722 mmWidth: 1,134 mmDepth: 30 mmVMPP: 31.85 VIMPP: 13.03 AIsc: 13.74 AVoc: 37.96 VTemp. Coefficient (Mpp): -0.3 %Clamp position on panel: Long and short sideConnector Type: JK03MEfficiency: 21.3 %Pallet Size: Oversized NOTICE: JK03M connectors are not compatible or tested with MC4 - we do not recommend mixing these connectors. Replacing JK03M connectors with MC4 connectors will not invalidate the warranty of the module as long as they are cut and crimped appropriately using the correct crimping tools. Click Here For Specs

Read more less

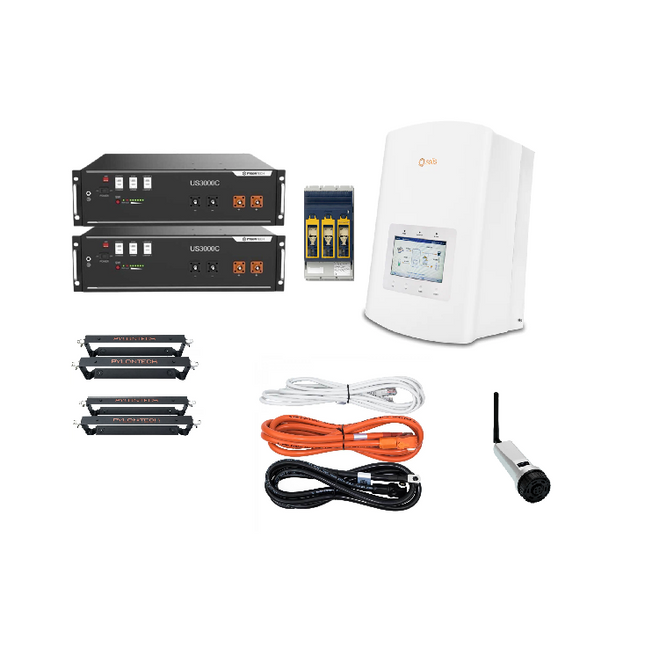

Included in kit: 2 x Pylontech US3000C 3.5kWh batteries 2 x US3000 battery brackets 1 x Solis 3.6kw hybrid inverter 1 x Pylon cable pack 1 x Solis data stick 1 x Keto fuse holder with 2 x 80a fuses   Pylon US3000C LiFePo4 Battery 3.5kWh for Solar   Supplier Part No: PYLON-US3000C Weight: 32 kg Battery Type: Lithium Ion Nominal Energy: 3552 Wh Depth of discharge: 95.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 1776 W Maximum Discharge Rate (5 Minutes): 3552 W Surge Discharge Rate (15 Seconds): 4320 W Maximum Charge Rate (5 Minutes): 1776 W Data Sheet US2000C, US3000C and US5000

Read more less

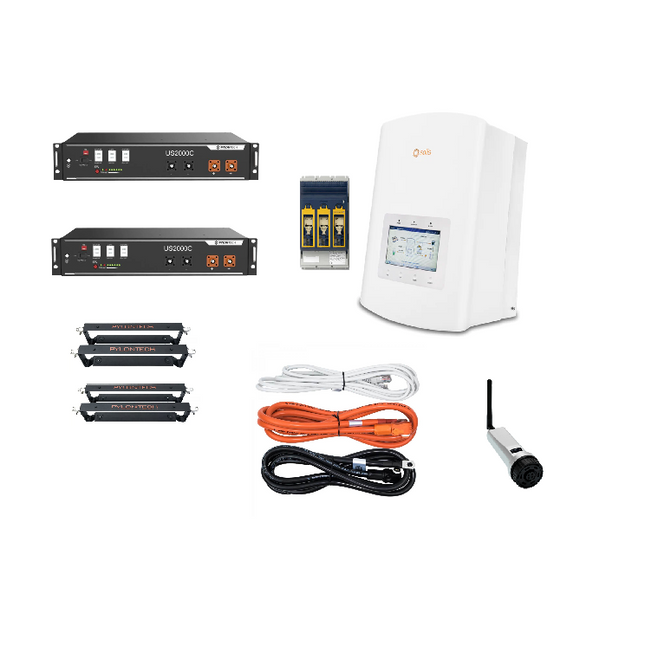

Included in kit: 2 x Pylontech US2000C 2.4kWh batteries 2 x US2000 battery brackets 1 x Solis 3.6kw hybrid inverter 1 x Pylon cable pack 1 x Solis data stick 1 x Keto fuse holder with 2 x 80a fuses   The Pylontech US2000C has an incredible DoD of 95%  Supplier Part No:PYLON-US2000C Weight:24 kg Battery Type:Lithium Ion Nominal Energy:2400 Wh Depth of discharge:95.00 % Voltage:48 V Continuous Discharge Rate (Normal Use):1200 W Maximum Discharge Rate (5 Minutes):2400 W Surge Discharge Rate (15 Seconds):4320 W Maximum Charge Rate (5 Minutes):2400 W Data Sheet US2000C, US3000C and US5000
