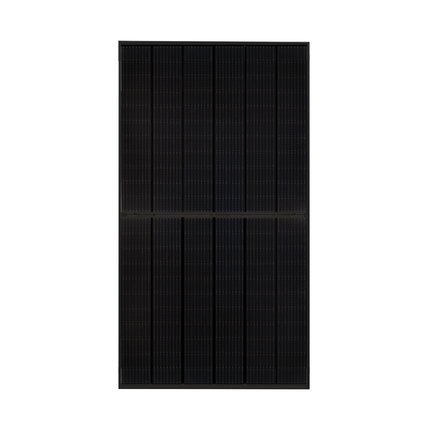

Tiger Neo N-type 54HL4-B 415 Watt
- Better light trapping and current collection to improve module power output and reliability.
- The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
- Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
- Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
- Durability Against Extreme Environmental Conditions, High salt mist and ammonia resistance.
- 25 Year Product Warranty
- 30 Year Linear Power Warranty
- Dimensions: 1722×1134×30mm
Supplier Part No: JKM415N-54HL4-B-JK03M
Weight: 22 kg
Rated Power: 415 W
MCS Reference: MCS PV0163/4756
Length: 1,722 mm
Width: 1,134 mm
Depth: 30 mm
VMPP: 31.85 V
IMPP: 13.03 A
Isc: 13.74 A
Voc: 37.96 V
Temp. Coefficient (Mpp): -0.3 %
Clamp position on panel: Long and short side
Connector Type: JK03M
Efficiency: 21.3 %
Pallet Size: Oversized
NOTICE: JK03M connectors are not compatible or tested with MC4 - we do not recommend mixing these connectors. Replacing JK03M connectors with MC4 connectors will not invalidate the warranty of the module as long as they are cut and crimped appropriately using the correct crimping tools.
