Products

The SuperPack batteries are extremely easy to install, not needing any additional components.The internal switch will disconnect the battery in case of over discharge, over charge or high temperature. The batteries can be connected in parallel. Series connection is not allowed.    Features Integrated BMS and safety switch The SuperPack batteries are extremely easy to install, needing no additional components. The internal switch will disconnect the battery in case of over discharge, over charge or high temperature. Abuse proof A lead-acid battery will fail prematurely due to sulfation: If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged). If it is left partially charged or worse, fully discharged. A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid. The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded. Efficient In several applications (especially off-grid solar), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%. The round-trip energy efficiency of a Li-ion battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions. Can be connected in parallel The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number BAT512020705 GTIN 8719076047537 Voltage 12.8V Battery Capacity (C20) 20Ah Terminal Type M6 Terminal Layout Right Hand Positive Dimensions (Including Terminals) H167 x W181 x D77mm Weight 3.5Kg Warranty 3 Years Country of Manufacture China Battery Technology Lithium Battery Application Deep Cycle

Read more less

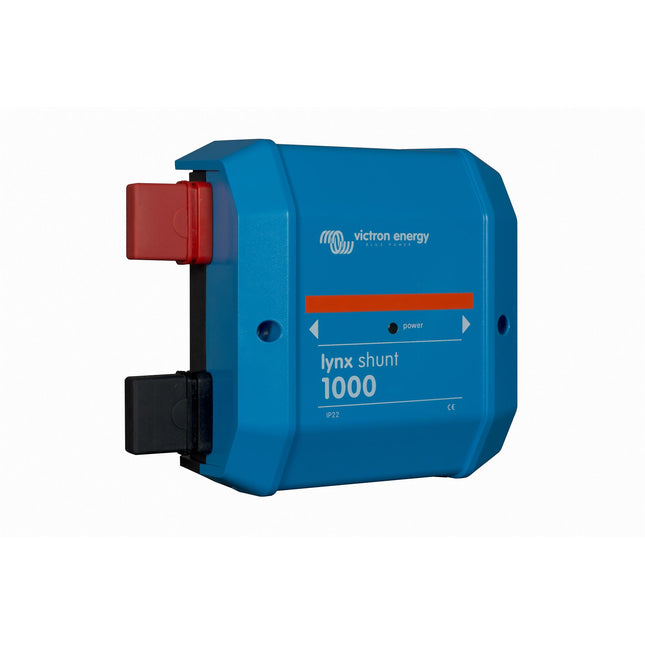

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery. Use the Color Control GX for reading out the information. Part of the modular Lynx distribution system.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number LYN040102100 Dimensions H166.5 x W181.8 x D81mm Weight (kg) 1.4 Warranty 5 Years

Read more less

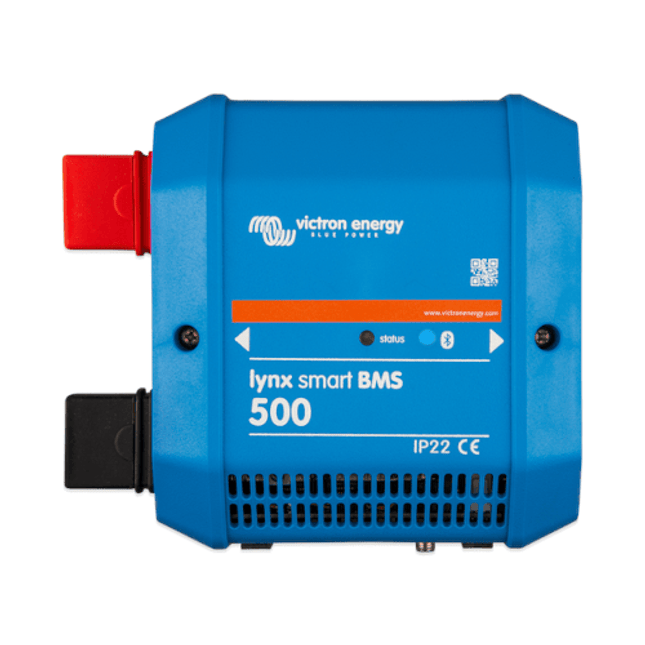

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are: Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch Battery monitor, indicating state of charge percentage and more data. Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell. Bluetooth for use with the VictronConnect App for setup and monitoring. Local and remote monitoring using a Victron GX device, for example the Cerbo GX. The Lynx Smart BMS is part of the modular Lynx Distribution system.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number LYN034160200 GTIN 8719076047476 Protection Category IP22 Bluetooth Enabled Yes Dimensions H190 x W180 x D80mm Weight 1.9Kg Warranty 5 Years

Read more less

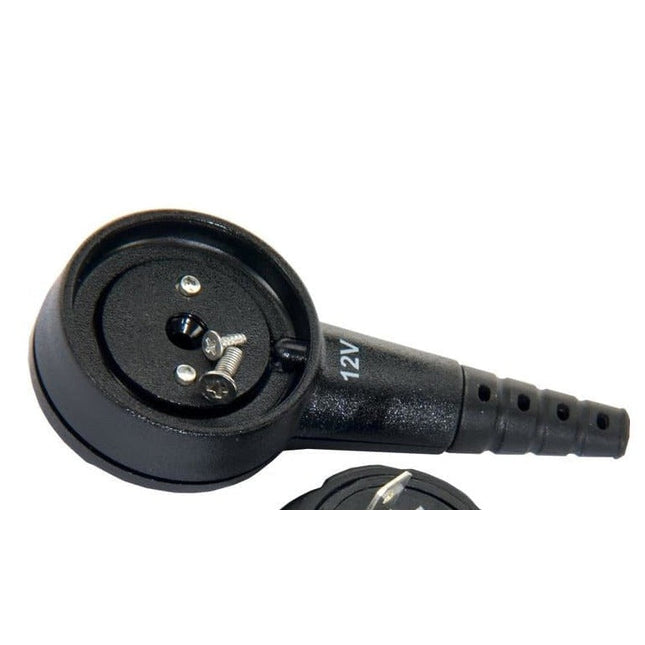

MagCode Power Clip 12V (max. 15A) Brand Victron Energy Manufacturer Part Number BPC900500014 GTIN 8719076046578 Warranty 5 Years

Read more less

CLICK HERE FOR SPEC SHEETS The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.   Features Uninterrupted AC power (UPS function) In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption Remote Monitoring and Control Monitor and control your MultiPlus and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more… Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  PowerControl – Dealing with limited generator, shore side or grid power With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).   Brand Victron Energy Manufacturer Part Number PMP122120000 Voltage 12V Transfer Switch (A) 16A Cont. Output Power at 25°C (VA) 1200 Peak Power (W) 2400 Max Efficiency 93% Zero Load Power (W) 10 Charge Current House Battery (A) 50 Charge Current Starter Battery (A) 1A(12V and 24V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off On/off/charger only Protection Category IP21 Dimensions H406 x W250 x D100mm Weight (kg) 8.2 Warranty 5 Years Country of Manufacture China

Read more less

CLICK HERE FOR SPEC SHEETS   The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.   Features Uninterrupted AC power (UPS function) In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption Remote Monitoring and Control Monitor and control your MultiPlus and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more… Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  PowerControl – Dealing with limited generator, shore side or grid power With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low). Brand Victron Energy Manufacturer Part Number PMP482160000 Voltage 48 Transfer Switch (A) 16 Cont. Output Power at 25°C (VA) 1600 Peak Power (W) 2800 Max Efficiency 95% Zero Load Power (W) 10 Charge Current House Battery (A) 20 Charge Current Starter Battery (A) 1 (12V and 24V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off On/off Protection Category IP21 Dimensions H470 x W265 x D120mm Weight (kg) 10.2 Warranty 5 Years Country of Manufacture India

Read more less

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.   Features Two AC Outputs The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more). Virtually unlimited power thanks to parallel operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity. Three phase capability In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity. PowerControl – Dealing with limited generator, shore side or grid power The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available. System configuring In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PMP485021010 Voltage 48 Transfer Switch (A) 100 Cont. Output Power at 25°C (VA) 5000 Peak Power (W) 10000 Max Efficiency 95% Zero Load Power (W) 35 Charge Current House Battery (A) 70 Charge Current Starter Battery (A) 4 (12 V and 24 V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H444 x W328 x D240mm Weight (kg) 30 Warranty 5 Years Country of Manufacture India

Read more less

CLICK HERE FOR SPEC SHEETS   The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.   Features PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters. Two AC Outputs The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel and three phase operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity. On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel. Remote configuring and monitoring Install a Color Control GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Brand Victron Energy Manufacturer Part Number PMP242305010 Voltage 24 Transfer Switch (A) 32 Cont. Output Power at 25°C (VA) 3000 Peak Power (W) 5500 Max Efficiency 95% Zero Load Power (W) 11 Charge Current House Battery (A) 70 Charge Current Starter Battery (A) 4 Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes, 2 pole Protection Category IP22 Dimensions H506 x W275 x D147mm Weight (kg) 18 Warranty 5 Years Country of Manufacture China

Read more less

CLICK HERE FOR SPEC SHEETS   An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.   Features A MultiPlus-II with LCD and GX functionality The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display. Display and Wi-Fi The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. GX device The integrated GX device includes: A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery. A USB port. A Ethernet port. A VE.Direct port. Applications The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Parallel and three phase operation Only one GX unit is needed in case of Parallel and three phase operation Brand Victron Energy Manufacturer Part Number PMP482506000 Voltage 48 Transfer Switch (A) 50 Cont. Output Power at 25°C 5000VA Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H506 x W275 x D147mm Weight (kg) 26 Warranty 5 Years Country of Manufacture India

Read more less

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.   Features A MultiPlus, plus ESS (Energy Storage System) functionality The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.   PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.   Solar energy: AC power available even during a grid failure The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.   Two AC Outputs The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.   Virtually unlimited power thanks to parallel and three phase operation (not available for the 8k and 10k models) Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.   On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.   Remote configuring and monitoring Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PMP482805000 GTIN 8719076050568 Voltage 48V Cont. Output Power at 25°C 8000VA Peak Power 15000W Output AC Voltage 230V Transfer Switch 100A Max. AC Input Current 100A Max. Battery Charge Current 110A Protection Category IP22 Efficiency 95% Bluetooth Compatible Yes Dimensions H642 x W363 x D206mm Weight 42Kg Warranty 5 Years

Read more less

Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). Low power models: please see Orion-Tr series  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122420020 Input Voltage Range 9-18V Output Voltage Adjustable 20-30V F set 26.4V Under Voltage Shutdown 8V Under Voltage Restart 10V Continuous Output Current 20A DC Connection M6 bolts Remote on-off Yes Galvanic Isolation No Can be connected in parallel Yes Protection Category IP20 Dimensions H65 x W88 x D195mm Weight (kg) 0.9 Warranty 5 Years

Read more less

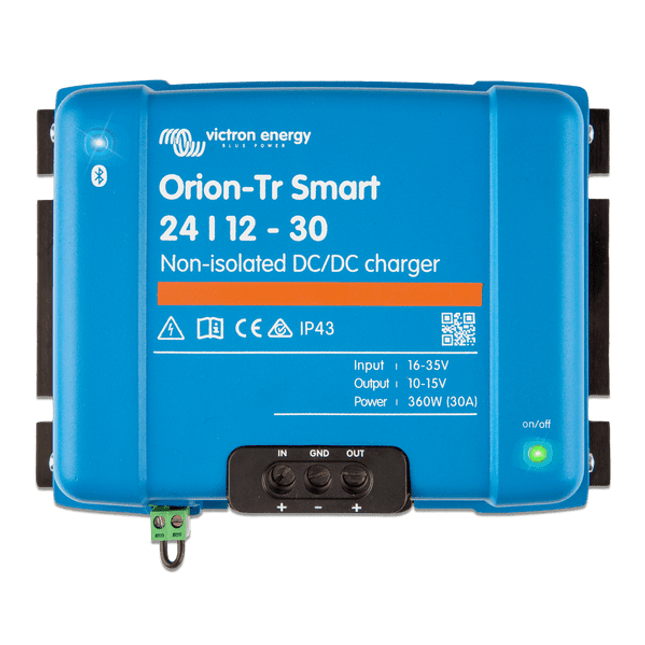

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable)  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI121222120 GTIN 8719076046066 Input Voltage Range 8-17V Under voltage shut down 7V Under Voltage Restart 7.5V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Cont. output current at nominal output voltage and 40°C 18A Short Circuit Output Current 40A Cont. Output Power at 25°C 280W Cont. output power at 40°C 220W Efficiency 87% DC Connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D70mm Weight 1.3Kg Warranty 5 Years

Read more less

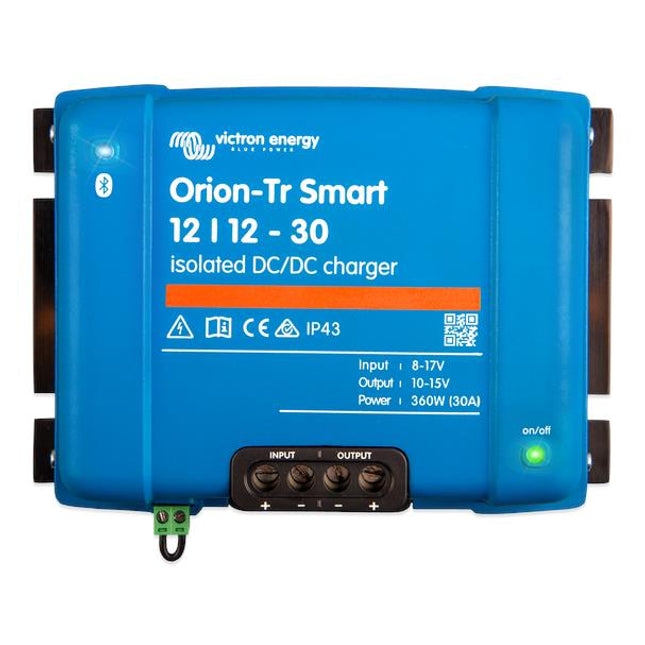

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable)  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI121236120 GTIN 8719076047698 Input Voltage Range 10-17 V Under Voltage Shutdown 7 V Under Voltage Restart 7.5 V Nominal Output Voltage 12.2 V Output Voltage Adjust Range 10-15 V Cont. output current at nominal output voltage and 40°C 30A Short Circuit Output Current 60 A Cont. Output Power at 25°C 430 W Cont. output power at 40°C 360W Efficiency 87% DC Connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80 mm Weight 1.8Kg Warranty 5 Years

Read more less

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable)    PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI241236140 GTIN 8719076048978 Input Voltage Range 20-35V Under voltage shut down 14V Under Voltage Restart 15V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Cont. output current at nominal output voltage and 40°C 30A Short Circuit Output Current 60A Cont. Output Power at 25°C 430W Cont. output power at 40°C 360W Efficiency 88% DC Connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80mm Weight 1.8Kg Warranty 5 Years

Read more less

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems.It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.   Features Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PIN122300000 Voltage 12 VA 3000 Peak Power (VA) 6000 Max Efficiency 93% IP Rating IP22 Dimensions (Including Terminals) H533 x W285 x D150mm Weight (kg) 19 Warranty 5 Years

Read more less

Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.   Features VE.Direct communication port The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage 210 – 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage, % load and alarms Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/off A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector. DC connection with screw terminals No special tools needed for installation. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PIN482120400 Voltage 48 VA 1200 Peak Power (W) 2200 Max Efficiency 92% Plug Type UK IP Rating IP21 Dimensions (Including Terminals) H117 x W232 x D327mm Weight (kg) 7.4 Warranty 5 Years

Read more less

CLICK HERE FOR SPEC SHEETS   Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.   Features A Quattro, plus ESS (Energy Storage System) functionality The Quattro-II can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro-II will automatically connect to the active source. PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The Quattro-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Quattro-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The Quattro-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters. Two AC Outputs The main output has no break functionality. The Quattro-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Parallel and three phase operation Up to 6 Quatros can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output, and up to 6 sets of three units can be parallel connected per phase for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity. On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel. Remote configuring and monitoring Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Brand Victron Energy Manufacturer Part Number QUA242505010 GTIN 8719076052920 Voltage 24V Cont. output power at 25ºC 5000VA Peak Power 9000W Output AC Voltage 230V Transfer Switch 50A Max. AC Input Current 50A Max. Battery Charge Current 120A Protection Category IP22 Efficiency 96% Bluetooth Compatible Yes Dimensions H560 x W328 x D148mm Weight 30Kg Warranty 5 Years

Read more less

CLICK HERE FOR SPEC SHEETS   Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.   Features A Quattro, plus ESS (Energy Storage System) functionality The Quattro-II can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro-II will automatically connect to the active source. PowerControl and PowerAssist – Boosting the capacity of the grid or a generator A maximum grid or generator current can be set. The Quattro-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Quattro-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The Quattro-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters. Two AC Outputs The main output has no break functionality. The Quattro-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Parallel and three phase operation Up to 6 Quatros can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output, and up to 6 sets of three units can be parallel connected per phase for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity. On-site system configuring, monitoring and control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel. Remote configuring and monitoring Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Brand Victron Energy Manufacturer Part Number QUA482504010 GTIN 8719076054092 Voltage 48V Cont. output power at 25ºC 5000VA Peak Power 9000W Output AC Voltage 230V Transfer Switch 50A Max. AC Input Current 50A Max. Battery Charge Current 70A Protection Category IP22 Efficiency 96% Bluetooth Compatible Yes Dimensions H560 x W328 x D148mm Weight 30Kg Warranty 5 Years

Read more less

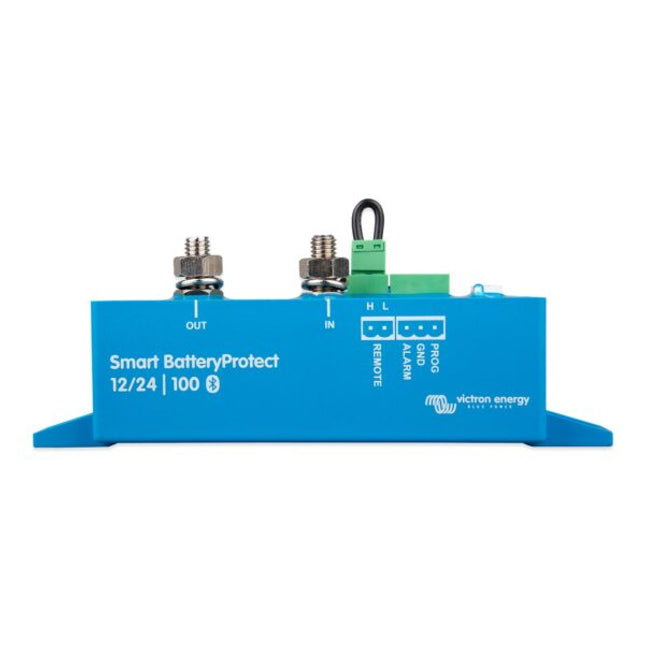

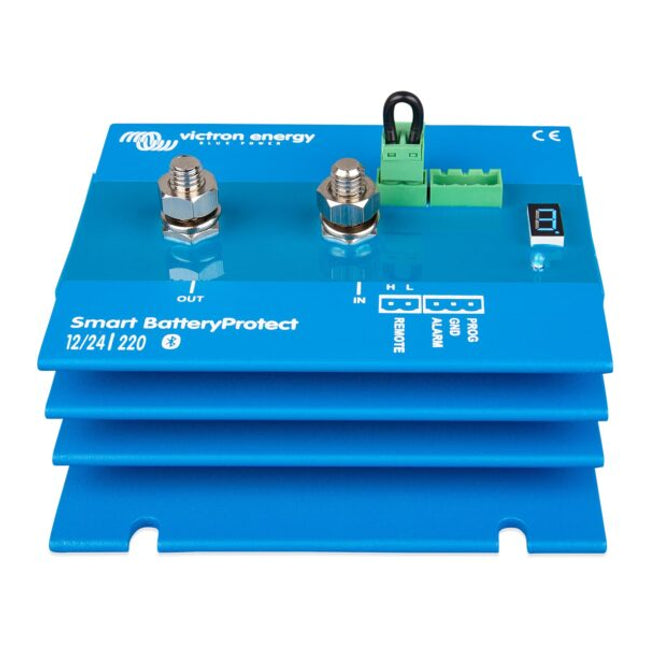

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).  If required, Bluetooth can be disabled. The Smart BatteryProtect is not designed for reverse currents from charging sources.   Features Protects the battery against excessive discharge and can be used as a system on/off switch The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch. 12/24V auto ranging The Smart BatteryProtect automatically detects system voltage one time only. Bluetooth: programming made easy When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled. A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS Ultra-low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information. Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V. Ignition proof No relays but MOSFET switches, and therefore no sparks. Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number BPR065022000 Voltage 12/24 Peak Current (During 30 Seconds) 250A Max. Continuous Load Current 65A Connection M6 IP Rating Electronics: IP67 (potted) Connections: IP00 Dimensions (Including Terminals) H40 x W48 x D106mm Weight (kg) 0.2 Warranty 5 Years

Read more less

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).  If required, Bluetooth can be disabled. The Smart BatteryProtect is not designed for reverse currents from charging sources.   Features Protects the battery against excessive discharge and can be used as a system on/off switch The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch. 12/24V auto ranging The Smart BatteryProtect automatically detects system voltage one time only. Bluetooth: programming made easy When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled. A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS Ultra-low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information. Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V. Ignition proof No relays but MOSFET switches, and therefore no sparks. Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number BPR122022000 Voltage 12/24 Peak Current (During 30 Seconds) 600A Max. Continuous Load Current 200A Connection M8 IP Rating Electronics: IP67 (potted) Connections: IP00 Dimensions (Including Terminals) H62 x 123 x D120 Weight (kg) 0.8 Warranty 5 Years

Read more less

Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers. With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life. Improves battery charging By measuring voltage at the battery bank terminals, errors arising from voltage-loss due to cable resistance are avoided – guaranteeing the correct charge-voltage. For lead batteries, battery temperature data is used to adjust the charge-voltages: cold batteries require an increased charge-voltage, whereas hot batteries require a decreased charge-voltage. For lithium batteries temperature data is used to disable charging when they are too cold: charging lithium batteries near or below freezing causes permanent damage to the cells. Look no wires The connection between Smart Battery Sense and one or more Solar Charger(s) is wireless: It uses VE.Smart Network – a wireless technology based on Bluetooth Smart. Information transmitted can be used simultaneously by one, two or more Solar Chargers connected to the same 12V, 24V and 48V battery bank. The Smart Network is set up using the VictronConnect app. Tidy, simple – smart Installation is simple, quick and tidy. Just connect the unit’s two eyelets to your battery terminals and attach the Smart Battery Sense unit directly onto the battery-body using its self-adhesive strip. Brand Victron Energy Manufacturer Part Number SBS050150200 Operating Voltage Range 8-60V Absolute Maximum Voltage 65V Cable Length 45cm Dimensions H14 x W38 x D38mm Warranty 5 Years

Read more less

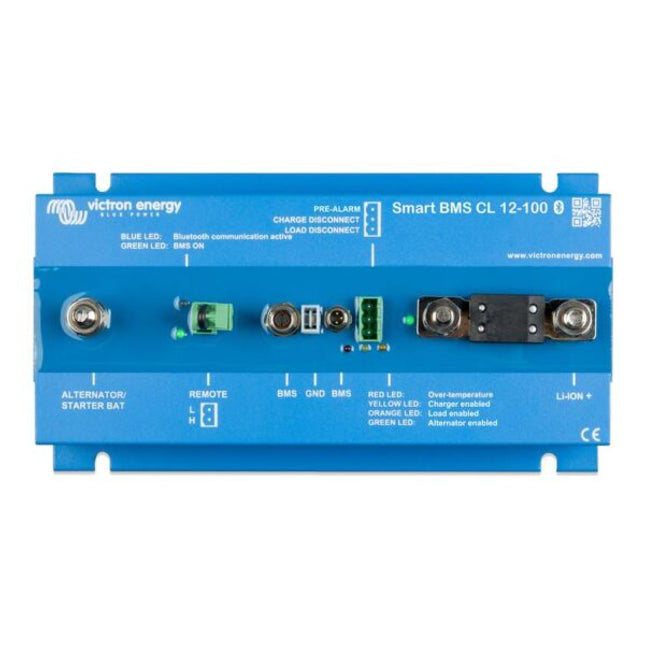

The Smart BMS CL 12/100 is a Battery Management system for Victron lithium-iron-phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator. The BMS CL 12/100 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery voltage, high battery voltage or over temperature. The dedicated alternator input provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries. The BMS is also equipped with a remote on off connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.   Features Battery Management system The BMS connects to 12,8V Victron LiFePO4 (LFP) batteries. Up to 5 batteries may be connected in parallel. Can be used as a system on/off switch. Alternator and battery protection The input current is electronically limited to approximately 90% of the fuse rating. A 100A fuse, for example, will therefore limit the input current to approximately 90A. Choosing the right fuse will: a. Protect the LFP battery against excessive charge current (important in case of a low capacity LFP battery). b. Protect the alternator against overload in case of a high capacity LFP battery bank (most 12V alternators will overheat and fail if running at maximum output during more than 5 minutes). Starter battery Protection This function is similar to that of a Cyrix Battery Combiner or Argo FET Battery Isolator. Current can flow to the LFP battery only if the input voltage (= voltage on the starter battery) exceeds 13V. And current cannot flow back from the LFP battery to the starter battery, thus preventing eventual damage to the LFP battery due to excessive discharge. Li-ion battery protection Excessive input voltage and transients are regulated down to a safe level. The Smart BMS CL will stop charging in case of cell over voltage or over temperature. It has three outputs, similar to the miniBMS Remote on/off input The remote on/off input controls the charging via the alternator. When off, charging via the alternator is disabled, while the BMS functionality will remain active allowing any loads and chargers to continue working regardless of the state of the remote input. When “system on/off switch” is enabled via VictronConnect, the BMS functionality will also be disabled. It consists of two terminals: Remote L and Remote H. A remote on-off switch or relay contact can be connected between H and L. Alternatively, terminal H can be switched to battery plus, or terminal L can be switched to battery minus Ignition proof No relays but MOSFET switches, and therefore no sparks. CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number BMS110022000 Maximum continuous charge current 100A (with 125A fuse) Input voltage to start charging > 13V Operating temperature range -40°C to +60°C Protection Category IP65 DC power connection M8 DC connector battery minus Faston female, 6.3mm Dimensions H65 x W120 x D224mm Weight 1.6Kg Warranty 5 Years

Read more less

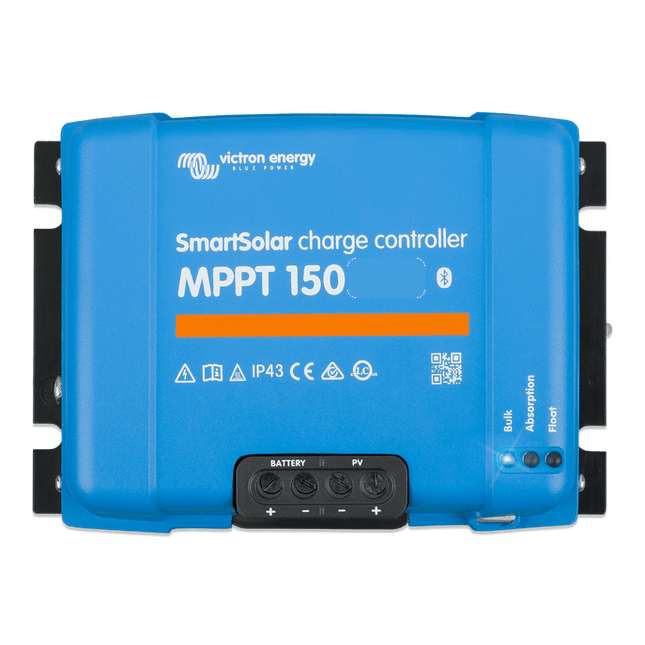

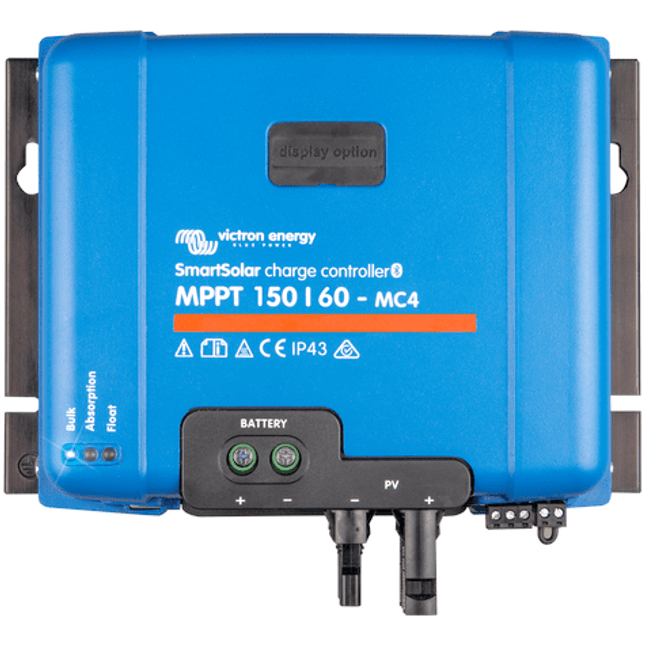

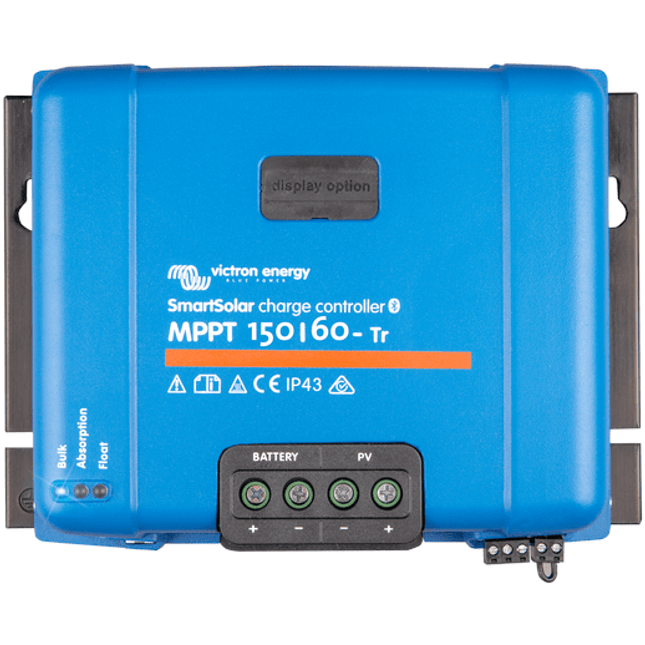

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.   MPPT: Ultra Fast Maximum Power Point Tracking By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing. Remote Monitoring and Control Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally. Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F). Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number SCC115045212 GTIN 8719076053026 Battery Voltage 12/24/48V Auto Select (software tool needed to select 36V) Rated Charge Current 45A Nominal PV power 12V: 650W / 24V: 1300W / 36V: 1950W / 48V: 2600W Max. PV short circuit current 50A Maximum PV Open Circuit Voltage 150V absolute maximum coldest conditions 145V start-up and operating maximum Maximum efficiency 98% Charge Algorithm multi-stage adaptive (eight pre-programmed algorithms) Data Communication Port VE.Direct Protection Category IP43 (electronic components), IP22 (connection area) Dimensions H130 x W186 x D70mm Weight 1.25Kg Warranty 5 Years

Read more less

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.   Features Remote Monitoring and Control Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520. Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Optional external battery voltage, temperature and current sensing via Bluetooth A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers. Synchronized parallel charging with Bluetooth Up to 10 units can be synchronized with Bluetooth. Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Remote on-off To connect for example to a VE.BUS BMS. Programmable relay Can be programmed to trip on an alarm, or other events. Optional: SmartSolar pluggable LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number SCC115060311 GTIN 8719076051398 Battery Voltage 12 / 24 / 48V Auto Select (software tool needed to select 36V) Rated Charge Current 60A Nominal PV Power, 12V 860W Nominal PV Power, 24V 1720W Max. PV Short Circuit Current 30A Maximum PV Open Circuit Voltage 150V absolute maximum coldest conditions 145V start-up and operating maximum Efficiency 98% Charge Algorithm Multi-stage adaptive (eight preprorammed algorithms) or user defined algorithm Data Communication Port VE.Direct IP Rating IP43 (electronic components), IP22 (connection area) Dimensions H215 x W250 x D95mm Weight 3Kg Warranty 5 Years

Read more less

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.   Features Remote Monitoring and Control Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520. Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Optional external battery voltage, temperature and current sensing via Bluetooth A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers. Synchronized parallel charging with Bluetooth Up to 10 units can be synchronized with Bluetooth. Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Remote on-off To connect for example to a VE.BUS BMS. Programmable relay Can be programmed to trip on an alarm, or other events. Optional: SmartSolar pluggable LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number SCC115060211 GTIN 8719076051381 Battery Voltage 12 / 24 / 48V Auto Select (software tool needed to select 36V) Rated Charge Current 60A Nominal PV Power, 12V 860W Nominal PV Power, 24V 1720W Max. PV Short Circuit Current 50A Maximum PV Open Circuit Voltage 150V absolute maximum coldest conditions 145V start-up and operating maximum Efficiency 98% Charge Algorithm Multi-stage adaptive (eight preprorammed algorithms) or user defined algorithm Data Communication Port VE.Direct IP Rating IP43 (electronic components), IP22 (connection area) Dimensions H185 x W250 x D95mm Weight 3Kg Warranty 5 Years

Read more less

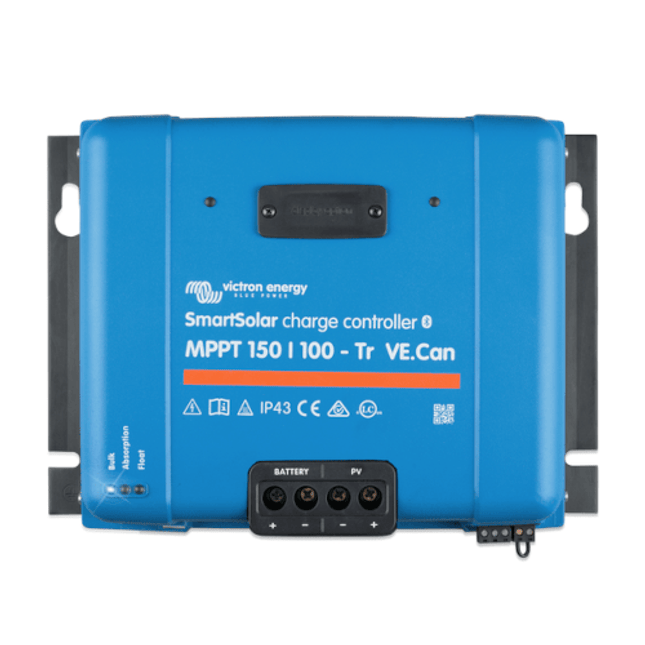

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.   Features Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers. VE.Direct or VE.Can For a wired data connection to a Color Control GX, other GX products, PC or other devices Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function. VE.Can: the multiple controller solution Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth Remote on-off To connect for example to a VE.BUS BMS. Programmable relay Can be programmed to trip on an alarm, or other events. Optional: SmartSolar pluggable LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number SCC115110411 GTIN 8719076050353 Voltage 12/24/48V Rated Charge Current 100A Nominal PV Power, 12V 1450W Max. PV Short Circuit Current 70A Max. PV Open Circuit Voltage 150V absolute maximum coldest conditions 145V start-up and operating maximum Protection Category IP43 (electronic components), IP22 (connection area) Efficiency 98% Bluetooth Enabled Yes Dimensions H216 x W295 x D103mm Weight 4.5Kg Warranty 5 Years

Read more less

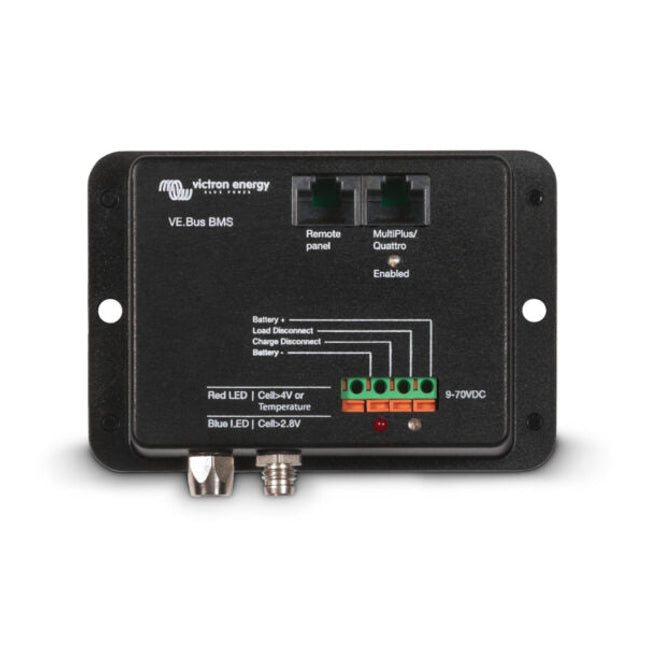

The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against over voltage, under voltage and over temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets.The BTVs of several batteries can be daisy chained. Please see our LiFePO4 battery documentation for details.  The BMS will:Shut down or disconnect loads in case of imminent cell under voltage.Reduce charge current in case of imminent cell overvoltage or over temperature (VE.Bus products only, see below).Shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature. Protects 12V, 24V and 48V systems The operating voltage range of the BMS: 9 to 70V DC. Communicates with all VE.Bus products The VE.Bus BMS connects to a MultiPlus, Quattro or Phoenix inverter with a standard RJ45 UTP cable. Other products, without VE.Bus can be controlled as shown below: Load Disconnect The Load Disconnect output is normally high and becomes free floating in case of imminent cell under voltage. Maximum current: 2A. The Load Disconnect output can be used to control the remote on/off of a load, and/or the remote on/off of an electronic load switch (Battery Protect) Charge Disconnect The Charge Disconnect output is normally high and becomes free floating in case of imminent cell over voltage or over temperature. Maximum current: 10mA. The Charge Disconnect output can be used to control the remote on/off of a charger and/or a Cyrix-Li-Charge relay and/or a Cyrix-Li-ct Battery Combiner CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number BMS300200000 Input Voltage Range 9-70VDC Protection Category IP20 Dimensions H105 x W78 x D32mm Weight (kg) 0.1 Warranty 5 Years

Read more less

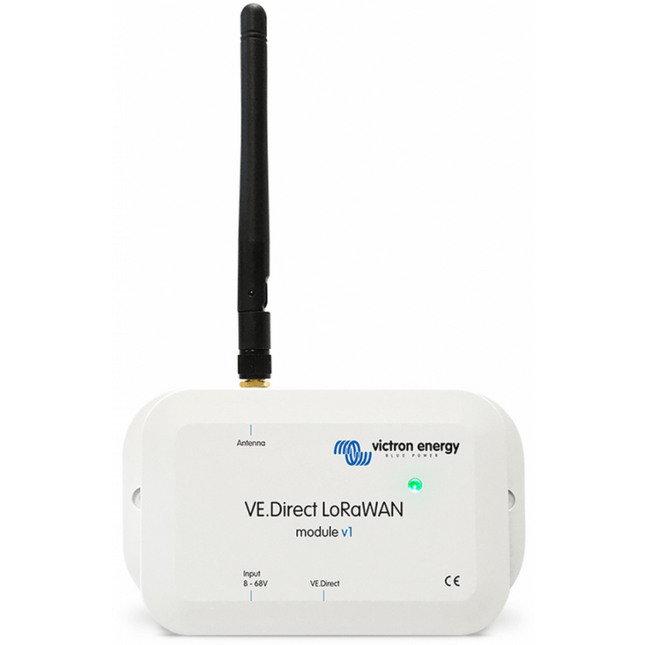

Using the VE.Direct to LoRaWAN module you can connect your BMV, MPPT or Phoenix Inverter to the Victron Remote Management portal. View information such as battery status or solar power wherever you are on your desktop or mobile phone. Remote Monitoring and Control You can check the status of your connected products on our free remote monitoring website: the VRM Online Portal. To get an impression of the VRM Online Portal, and use the ‘Try Our Demo’ button. The portal is free of charge. Long Range Wide Area Network LoRaWAN is a wireless network that operates on the 868Mhz frequency. It has a long range and uses small amounts of power. The VE.Direct LoRaWAN module can send hourly data updates via this network. You do not need a subscription to make use of this network. If you do not have coverage in your region it is possible to add your own gateway. Brand Victron Energy Manufacturer Part Number ASS030538010 Warranty 5 Years

Read more less

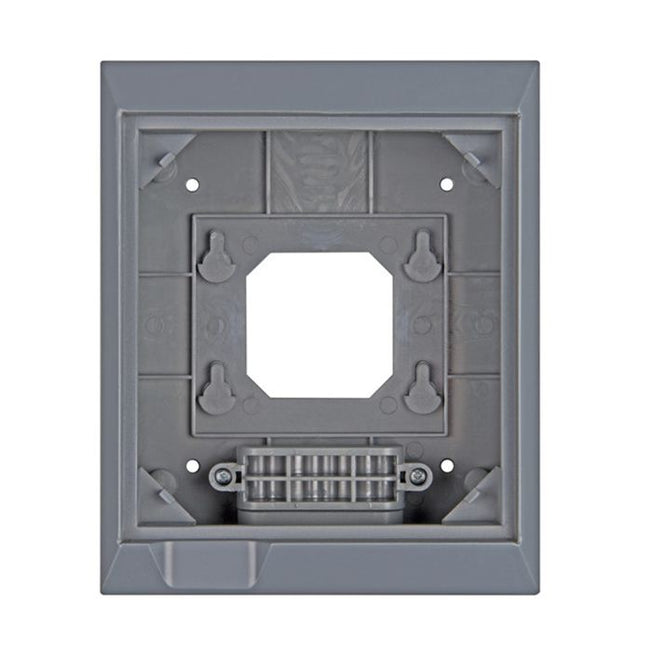

Wall mount enclosure for Color Control GX  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ASS050400000 Dimensions H163 x W135 x D72mm Warranty 5 Years

Read more less

Part No: VIR-F16-TC-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait roofing kit, Centre. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-TC-G1 Weight:7 kg Length:1.8 m

Read more less

Part No: VIR-F16-LCLB-S-G1 Mounting - In Roof Viridian Clearline Fusion G1 landscape corner conversion kit, left bottom corner (left panel above). Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LCLB-S-G1 Weight:21 kg Length:1.8 m

Read more less

Part No: VIR-F16-LCRT-G1 Mounting - In Roof Viridian Clearline Fusion G1 landscape corner conversion kit, right top corner. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LCRT-G1 Weight:5 kg Length:1.8 m

Read more less

Part No: VIR-F16-LC-G1 Mounting - In Roof Viridian Clearline Fusion G1 landscape roofing kit, Centre. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LC-G1 Weight:12 kg Length:1.8 m

Read more less

Part No: VIR-F16-LJ-G1 Mounting - In Roof Viridian Clearline Fusion corner conversion kit, left top corner. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LJ-G1 Weight:2.1 kg Length:1.8 m

Read more less

Part No: VIR-F16-LL-G1 Mounting - In Roof Viridian Clearline Fusion G1 landscape roofing kit, Left. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LL-G1 Weight:12 kg Length:1.8 m

Read more less

Part No: VIR-F16-LR-G1 Mounting - In Roof Viridian Clearline Fusion G1 landscape roofing kit, Right. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LR-G1 Weight:12 kg Length:1.8 m

Read more less

Part No: VIR-F16-LY-G1 Mounting - In Roof Viridian Clearline Fusion G1 landscape roofing kit, Row. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-LY-G1 Weight:2.1 kg Length:1.8 m

Read more less

Part No: VIR-VAL16-G1 Mounting - In Roof Viridian Clearline Fusion corner conversion kit, left top corner. Used for roof integrated PV module mounting systems.   Supplier Part No:VAL16-G1 Weight:21 kg Length:1.8 m

Read more less

Part No: VIR-F16-CLB-S-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait corner conversion kit, left bottom corner (left panel above) Used for roof integrated PV module mounting systems.   Supplier Part No:F16-CLB-S-G1 Weight:21 kg Length:1.8 m

Read more less

Part No: VIR-F16-CLT-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait corner conversion kit, left top corner. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-CLT-G1 Weight:5 kg Length:1.8 m

Read more less

Part No: VIR-F16-CRB-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait corner conversion kit, right bottom corner. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-CRB-G1 Weight:21 kg Length:1.8 m

Read more less

Part No: VIR-F16-CRT-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait corner conversion kit, right top corner. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-CRT-G1 Weight:5 kg Length:1.8 m

Read more less

Part No: VIR-F16-T-LR-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait roofing kit Left, Right. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-T-LR-G1 Weight:16 kg Length:1.8 m

Read more less

Part No: VIR-F16-TC-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait roofing kit, Centre. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-TC-G1 Weight:7 kg Length:1.8 m

Read more less

Part No: VIR-F16-TL-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait roofing kit, Left. Used for roof integrated PV module mounting systems. VIR-F16-T-LR-G1 is an alternative kit which includes all the parts for both flashing kits (right and left togeher)   Supplier Part No:F16-TL-G1 Weight:8 kg Length:1.8 m

Read more less

Part No: VIR-F16-TR-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait roofing kit, Right. Used for roof integrated PV module mounting systems. VIR-F16-T-LR-G1 is an alternative kit which includes all the parts for both flashing kits (right and left together)   Supplier Part No:F16-TR-G1 Weight:8 kg Length:1.8 m

Read more less

Part No: VIR-F16-TY-G1 Mounting - In Roof Viridian Clearline Fusion G1 portrait roofing kit, Row. Used for roof integrated PV module mounting systems.   Supplier Part No:F16-TY-G1 Weight:2.1 kg Length:1.8 m

Read more less

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us. Part No: VIR-PV16-405-M10 Panels - Monocrystallines Rating: 405W Efficiency: 20.7% Width: 1,134mm Height: 1,722mm 405 Wp Clearline PV High Performance Monocrystalline Silicon Solar Photovoltaic Panel. M10 format half cut cells, black backing sheet. For roof integration with M10 roofing kits.   Simple roof integration with clean,low-profile aesthetic for new build and retrofit Rapid installation times of less than 45 min/kWp easily achieved Compatible with the widest range of slate and tile including special fixings for different batten thickness Fitted during the normal roofing programme, enabling clarity of responsibility and safe working practices Achieves highest fire rating and wind resistance without modifications to the roof   Supplier Part No: PV16-405-M10 Weight: 25 kg Rated Power: 405 W Length: 1,722 mm Width: 1,134 mm Depth: 70 mm VMPP: 31.02 V IMPP: 13.06 A Isc: 13.62 A Voc: 37.05 V Temp. Coefficient (Mpp):-0.35 % Clamp position on panel: Long and short side Connector Type: MC4 Efficiency: 20.7 % Pallet Size: Oversized

Read more less
