Description

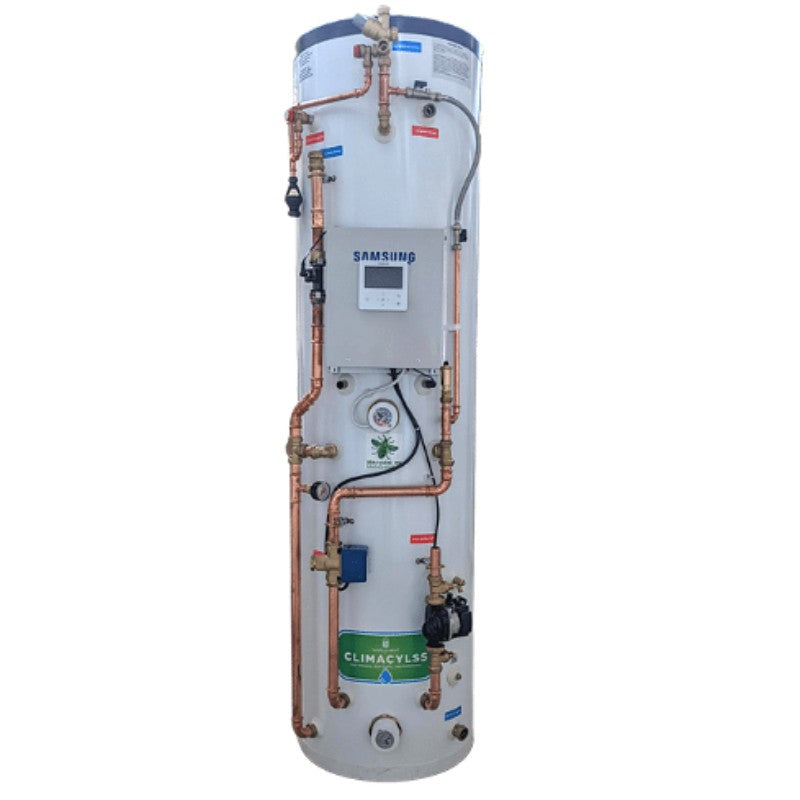

These World Heat, Manchester manufactured, pre-plumbed cylinder with a 50L integrated buffer is designed for a quick and easy installation of a Samsung air source heat pump.
This top quality product saves valuable installation time, helps prevent installation faults and is space efficient and neat. There is also the additional benefit on a 25 Year Manufacturing Warranty on the Stainless Vessel and a 12 Month Manufacturing Warranty on Components.
Key features
- High quality stainless steel cylinder that come with a 25 year manufacturing cylinder on the internal vessel
- Highly insulated, ERP rated and supplied with a full unvented kit.
- WRAS approved product with ISO9001 certified quality management.
- These do not come with a primary circulation pump.
Cylinder Specifications
Capacity:
300L
Weight (empty):
88kg
Weight (full):
388kg
Height:
2020mm
Width:
600mm
Diameter:
650mm
Coil size:
3m²
Product Details
Product code
180SCYLPPMID
Standing heat loss
92.6 W/h
Re-heat time
35-45 mins
Expansion vessel charge
3bar
Mains inlet pressure
3bar
Expansion relief valve
6bar
T&P valve setting
7bar / 90 Deg. C
Buffer Vessel
50L (integrated)
Included Components
Samsung control board (MIM-E03EN)
3-port valve
Secondary circulation pump
2x 3kW immersion heaters (buffer & cylinder)
Filling loop
Pressure gauge
22mm tundish
22mm inlet group valve
Buffer air vent
