Description

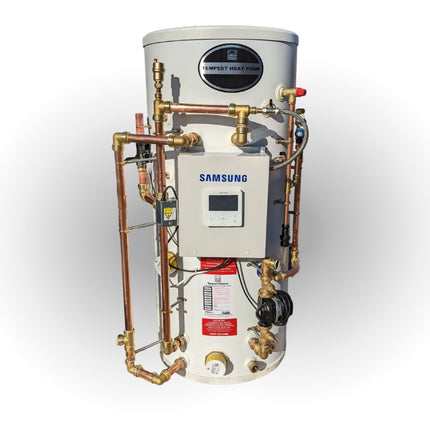

This is a pre-plumbed Tempest cylinder built for use with a Samsung ASHP with an inbuilt 50 litre buffer. Featuring a purpose-designed coil with a large surface area to allow maximum heat transfer of renewable energy into the stored water. Manufactured from Duplex stainless-steel, the cylinders have push-fit pre-fabricated pipework and wiring to assist with a fast and easy installation.
-
Remote expansion vessel with factory-fitted wall mounting bracket
- Full unvented kit supplied
- Duplex stainless steel provides superior corrosion resistance
- White steel cased finish
- 316L grade stainless-steel 22mm compression fittings and coils
- Supplies mains pressure hot water and high flow rates
- Fast reheat
- Factory-fitted temperature and pressure (T&P) relief value set
- Highly efficient
- Fully insulated to minimise any heat loss
- Lifetime manufacturing warranty on inner container (2 years on components)*
Cylinder Specifications
Capacity:
200L
Weight (empty):
TDB
Weight (full):
TDB
Height:
1716mm
Diameter:
580mm
Coil size:
3.3m²
Product Details
Product code
TSMI200/50/HP/PREP/SAM
Standing heat loss
1.64 kWh/24h
Max primary pressure
3bar
T&P valve setting
7bar / 90 Deg. C
Immersion heater
3kW
Buffer Vessel
50L (integrated)
Included Components
Samsung control board (MIM-E03EN)
3-port valve
Secondary circulation pump
Filling loop
Pressure gauge
15-22mm tundish
22mm inlet group valve
Auto air vent
