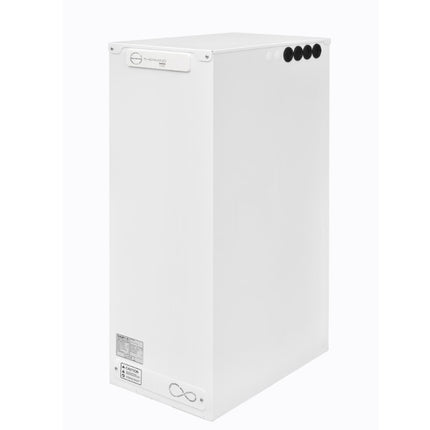

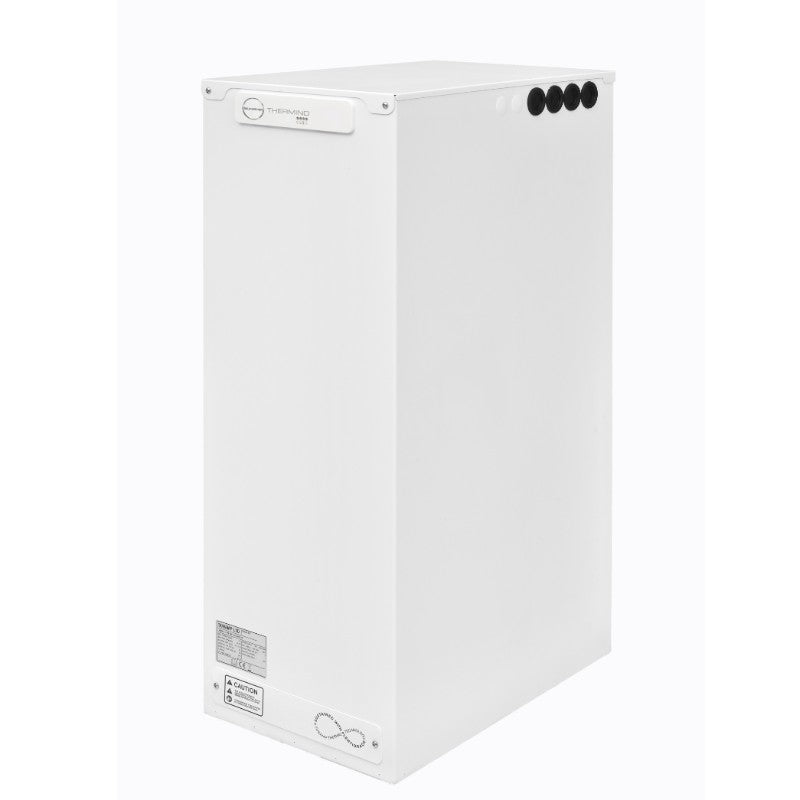

Sunamp Thermino 300 iPV

Description

Thermino iPV uses an external heating source (e.g. a boiler) as a main source of heat, and surplus PV energy to provide an AC power supply, which is supplied to the electric heater inside the Heat Battery. This is a great way to add water storage and increase the self-consumption of a PV system. The reduced size combined with the fact that the Sunamp does not need any venting allows for full flexibility in install location.

Only the Myenergi Eddi can be used as an immersion controller at present.

The Thermino 300 iPV would typically be installed in a 4-5 bedroom property.

Note, the Sunamp is very heavy:

  • Tilting it beyond 45 degrees may damage the unit and void your warranty.

Power Inputs:

Grid electricity - Secondary Source
Boiler - Primary Source
Solar Panels - Secondary Source
Heat Pump - Some high temp



General Specifications

Product Code DKP-DBW-ATZ-1
Equivalent energy storage 14.0kWh
Equivalent hot water capacity 284L
Water available at 40°C 370L
Weight in use 233kg
Height 1050mm
Width 365mm
Depth 575mm
Storage core warranty 10 Years
Other parts warranty 2 Years

Technical Specifications

Standing heat loss 35W
Energy efficiency rating A+
Recommended flow rate 25LPM
Minimum supply pressure 1.5 bar
Maximum supply pressure 10 bar
Connected load at 230v, 50hz 2,800W
Product form

Thermino iPV uses an external heating source (e.g. a boiler) as a main source of heat, and surplus PV energy... Read more

Low Stock Levels

Login to see prices

  • Quality
  • Reliabilty
  • Trusted

Description

Thermino iPV uses an external heating source (e.g. a boiler) as a main source of heat, and surplus PV energy to provide an AC power supply, which is supplied to the electric heater inside the Heat Battery. This is a great way to add water storage and increase the self-consumption of a PV system. The reduced size combined with the fact that the Sunamp does not need any venting allows for full flexibility in install location.

Only the Myenergi Eddi can be used as an immersion controller at present.

The Thermino 300 iPV would typically be installed in a 4-5 bedroom property.

Note, the Sunamp is very heavy:

  • Tilting it beyond 45 degrees may damage the unit and void your warranty.

Power Inputs:

Grid electricity - Secondary Source
Boiler - Primary Source
Solar Panels - Secondary Source
Heat Pump - Some high temp



General Specifications

Product Code DKP-DBW-ATZ-1
Equivalent energy storage 14.0kWh
Equivalent hot water capacity 284L
Water available at 40°C 370L
Weight in use 233kg
Height 1050mm
Width 365mm
Depth 575mm
Storage core warranty 10 Years
Other parts warranty 2 Years

Technical Specifications

Standing heat loss 35W
Energy efficiency rating A+
Recommended flow rate 25LPM
Minimum supply pressure 1.5 bar
Maximum supply pressure 10 bar
Connected load at 230v, 50hz 2,800W
