Description

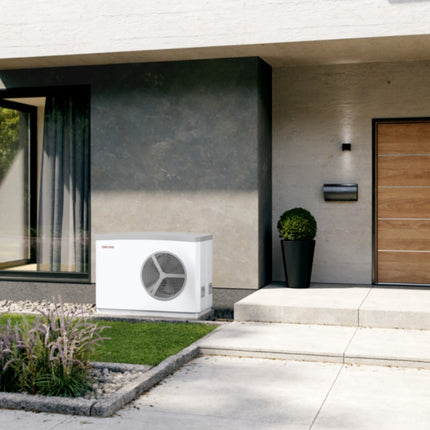

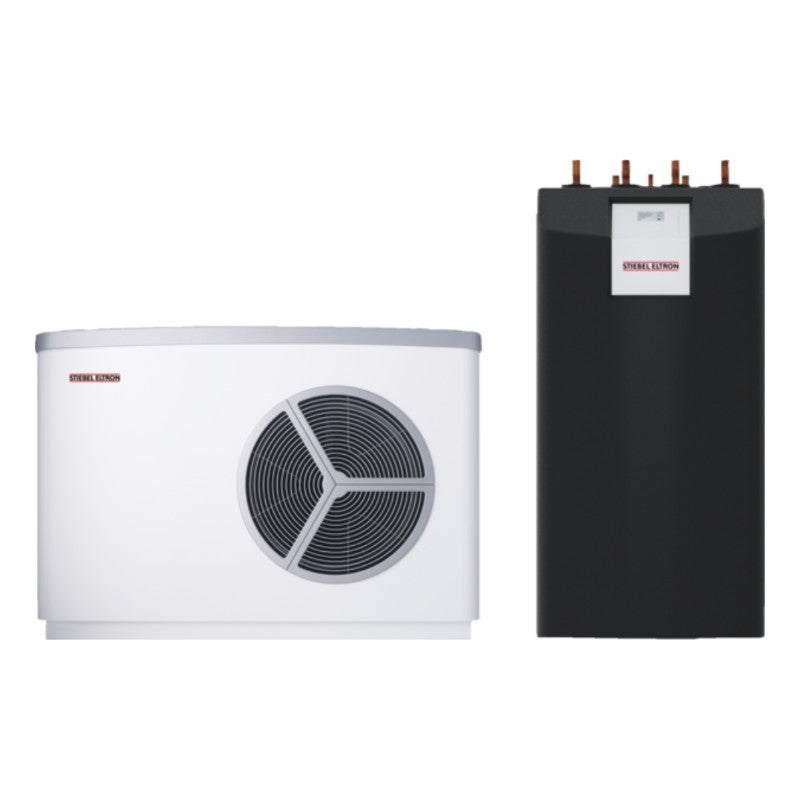

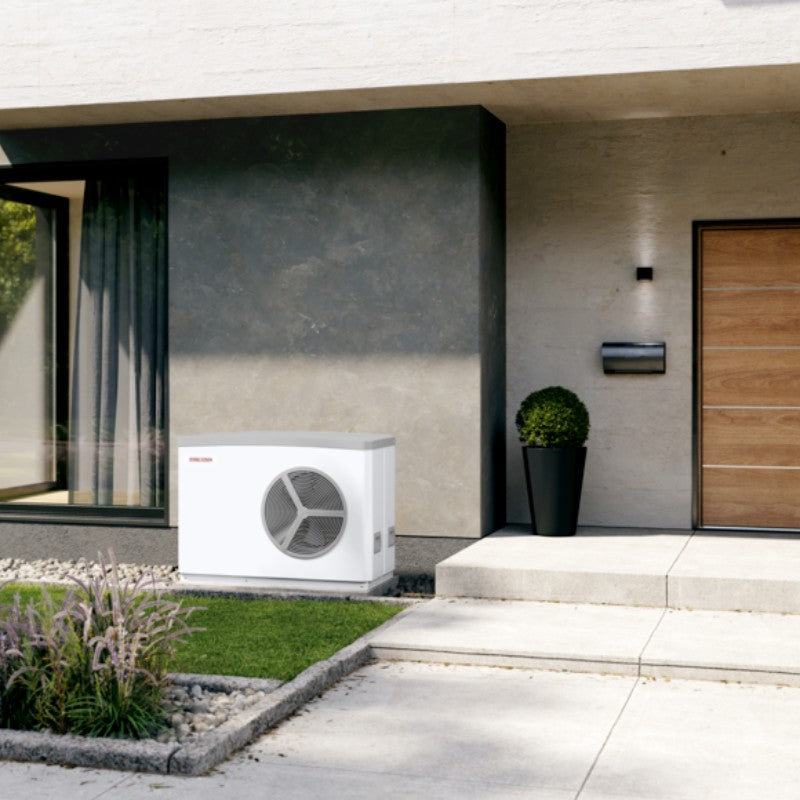

The Stiebel Eltron WPL-A 07 HK 230 Premium pack 5 contains contains a 7kw heat pump and 180L cylinder without buffer along with all the equipment required for a comprehensive heat pump install.

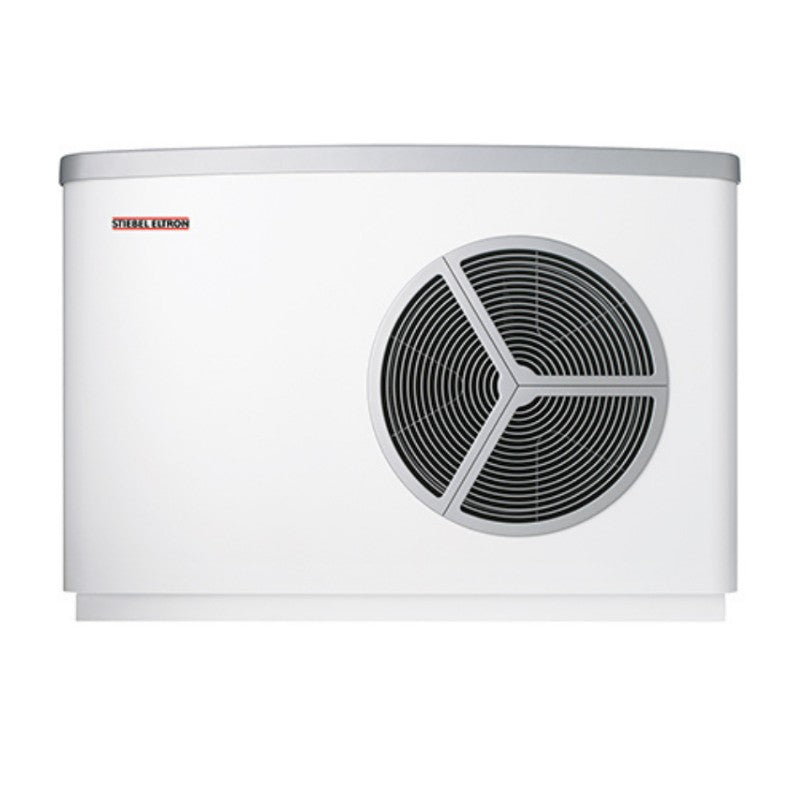

Heat Pump
This new design is top of the range, suitable not only for hot water and heating but also for cooling in the summer months. Since the inverter unit achieves high flow temperatures even at very low outside temperatures of down to –25 °C, it is equally suitable for use in new build and renovation projects. The WPL-A HK Premium contains a futureproof refrigerant and thanks to its exceptionally quiet operation, it can be sited even in densely built-up areas, especially as an outdoor installation requiring minimal valuable indoor space.
The high flow temperatures of up to 75 °C enable high DHW temperatures and mixed water volumes and the inverter technology provides adjusted heating output. These heat pump are highly efficienct keeping the running costs low and the kit is smart grid ready allowing for easy install.

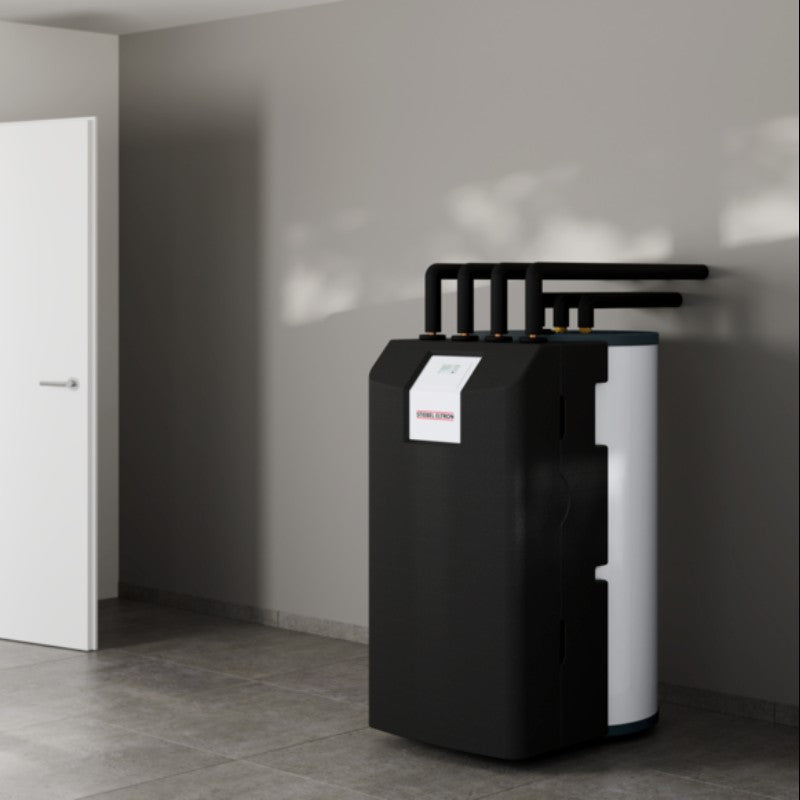

Cylinder
All of the components of the HSBB 180 integral cylinder interact perfectly: they are exactly matched to one another, offer a long service life, save space, and provide a system with high levels of efficiency and reliability.
For the most comprehensive and up-to-date information on all the products in this pack, head to the Stiebel Eltron TOOL BOX and search for the different components.
Pack Information
| Product name |
WPL-A Premium Pack 5
|
| Product number |
204904
|
| Pack warranty |
7 years*
|
Kit Includes
|
| 1 |
7kW Heat pump |
WPL- A 07 HK 230
|
200123
|
| 1 |
180L Cylinder |
HSBB 180 S Plus (GB)
|
204552
|
| 1 |
Thermostat
|
FET
|
234723
|
| 1 |
Internet service gateway |
ISG web
|
229336
|
| 1 |
Bypass valve |
Bypass valve
|
234027
|
Heat Pump Technical Information
| Product name |
WPL- A 07 HK 230
|
| Product number |
200123
|
|
| MCS listed SCOPs |
|
| @35°C |
4.66
|
| @40°C |
4.43
|
| @45°C |
4.21
|
| @50°C |
3.95
|
| @55°C |
3.69
|
|
| Heating nominal capacity |
7.00kW |
| Heating output at A-7/W35 |
6.87kW |
| Compressor type |
Rotary piston
|
| Refrigerant Type |
R454C
|
| Refrigerant Volume |
3kg |
| Required flow rate |
10.7L/m |
|
| Heating up to |
75°c |
| Min operating temperature |
-22°c |
| Max operating temperature |
40°c |
| Electricity Supply |
220-240V |
| Sound Power Level |
48dBA |
|
| Height |
900mm |
| Width |
1270mm |
| Depth |
593mm |
| Net Weight |
135kg |
Cylinder Technical Information
| Product name |
HSBB 180 S Plus (GB)
|
| Product number |
204552 |
| Capacity |
178L |
| Weight |
100kg |
| Weight full |
278kg |
| Height |
1309mm |
| Width |
605mm |
| Diameter |
917mm |
|
| Buffer |
no buffer |
| Coil surface area |
1.59m2
|
ERP Band
|
B |
|
*Standard 2 year warranty, extended to 7 for registered installers
