Description

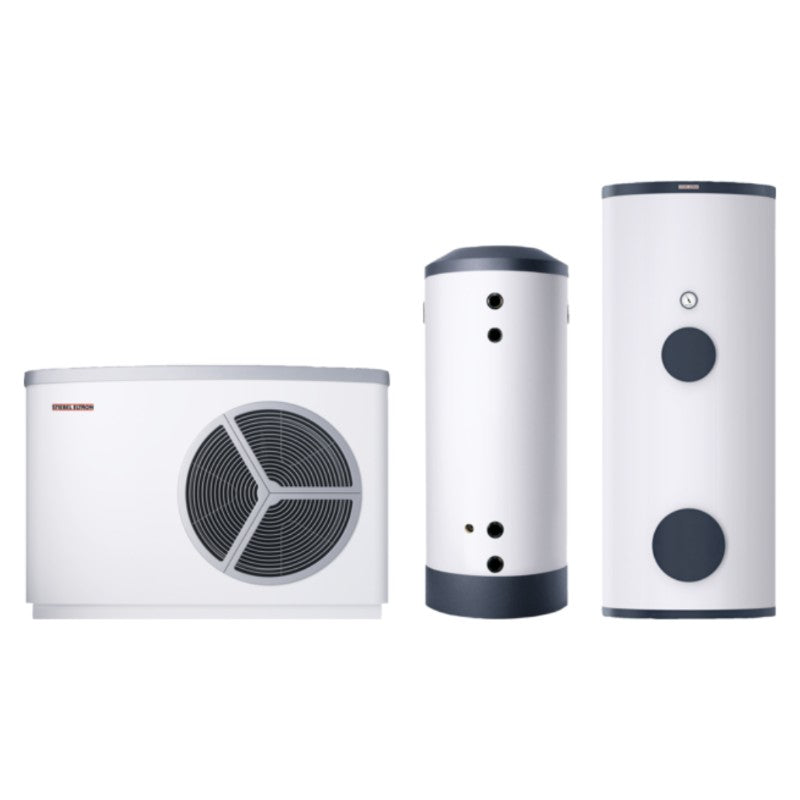

The Stiebel Eltron WPL 25 AS Plus Pack 4 contains contains an 13kw heat pump and 270L cylinder with inbuilt 100L buffer along with all the equipment required for a comprehensive heat pump install.
The AS heat pump cannot provide cooling, if this is required see the WPL 25 ACS.
Heat Pump

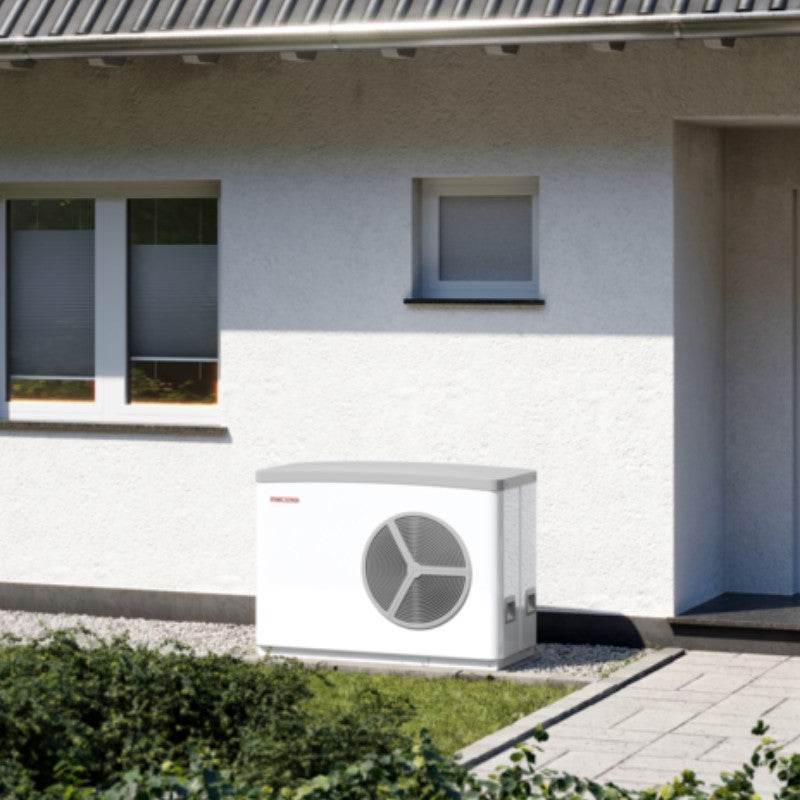

Thanks to its exceptionally quiet operation, the WPL 25 AS heat pump can be sited even in densely built-up areas, especially as an outdoor installation requiring minimal valuable indoor space. Thanks to its high quality individual parts, these models reach an output level that enables flow temperatures of up to 65°C, and offer first class efficiency even in temperatures well below freezing.
Cylinder
The HSBC comprises both a DHW cylinder and a buffer cylinder - halving the installation space otherwise required for individual cylinders. This integral cylinder conveniently covers everything required to match with a heat pump.
For the most comprehensive and up-to-date information on all the products in this pack, head to the Stiebel Eltron TOOLBOX and search for the different components.
Pack Information
| Product name |
WPL Plus Pack 4
|
| Product number |
204914-AS
|
| Pack warranty |
7 years*
|
Kit Includes
|
| 1 |
13kW Heat pump |
WPL 25 AS
|
236642
|
| 1 |
300L Cylinder |
SBB 302 WP (GB) Set
|
202924
|
| 1 |
200L buffer tank
|
STH 210 plus
|
203763
|
| 1 |
Digital thermostat |
FET |
234723
|
| 1 |
Internet service gateway |
ISG web
|
229336
|
| 1 |
Central heating pump |
WPKI-HK E
|
233602
|
| 1 |
Heat pump controller
|
WPM
|
234727
|
| 1 |
Pump |
UP 25 / 7.5 PCV
|
201620
|
| 1 |
Bypass valve |
Bypass Valve
|
234027
|
| 1 |
Pipe connection kit
|
BBI 5 Set
|
236695
|
| 1 |
Pump valves |
WPKI 5 Set |
205875 |
Heat Pump Technical Information
| Product name |
WPL 25 AS
|
| Product number |
236642
|
|
| MCS listed SCOPs |
|
| @35°C |
4.07
|
| @40°C |
3.86
|
| @45°C |
3.65
|
| @50°C |
3.44
|
| @55°C |
3.23
|
|
| Heating nominal capacity |
13.00kW |
| Heating output at A-7/W35 |
12.86kW |
| Compressor type |
Scroll
|
| Refrigerant Type |
R410A
|
| Refrigerant Volume |
4.7kg |
| Required flow rate |
16.7L/m |
|
| Heating up to |
65°c |
| Min operating temperature |
-20°c |
| Max operating temperature |
40°c |
| Electricity Supply |
220-240V |
| Sound Power Level |
55dBA |
|
| Height |
1045mm |
| Width |
1490mm |
| Depth |
593mm |
| Net Weight |
175kg |
Cylinder Technical Information
| Product name |
SBB 302 WP (GB) Set
|
| Product number |
228945 |
| Capacity |
290L |
| Weight |
184kg |
| Weight full |
374kg |
| Height |
1770mm |
| Diameter |
700mm |
|
| Buffer |
seperate, see below |
| Coil surface area |
4.80m2
|
ERP Band
|
C |
Buffer Technical Information
| Product name |
STH 210 plus
|
| Product number |
203763 |
| Capacity |
207L |
| Weight |
58kg |
| Weight full |
265kg |
| Height |
1535mm |
| Diameter |
630mm |
Standby energy consumption @ 65°C
|
45.83W |
|
*Standard 2 year warranty, extended to 7 for registered installers
