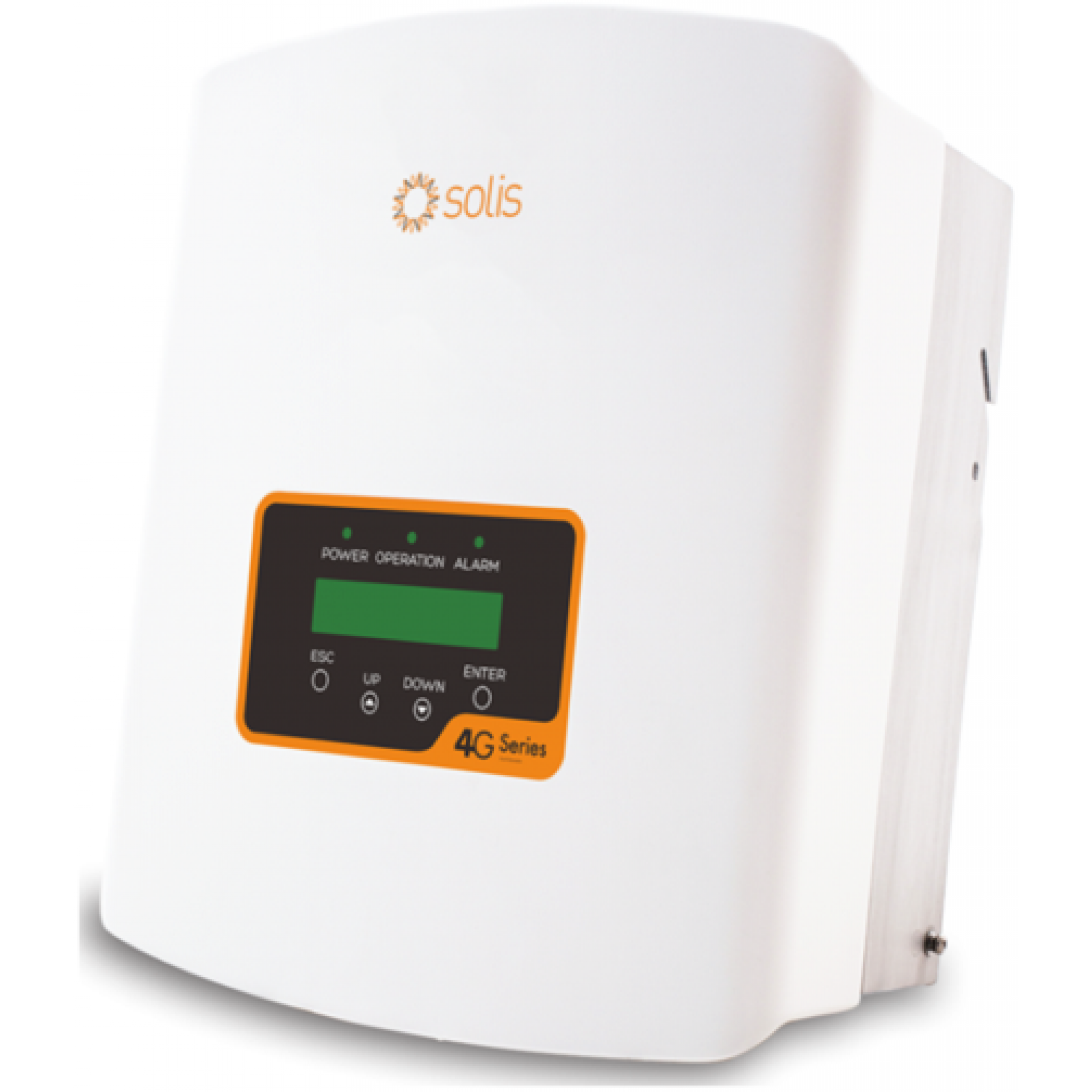

Solis 3.6kW Mini S6 1 MPPT with DC isolator

Description

    • Part No: SOL-3.6-MINI-S6-DC Inverters - Main Units
      • Rating: 3,600W
      • Phases: 1

      The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

      Product Features

      • Super high frequency switching technology with maximum efficiency of 97.3%
      • Max PV Power of 5.4kW
      • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
      • Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 500V
      • Intergrated Export Power Manager (EPM)
      • Integrated AFCI (DC arc-fault circuit protection)
      • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
      • 5-year standard warranty

    • Supplier Part No: S6-GR1P3.6K-M-DC
      Weight: 7.7 kg
      Rated Power: 3,600 W
      Min PPT Voltage: 90 V
      Max PPT Voltage: 500 V
      DC Startup Voltage: 90 V
      DC Shutdown Voltage: 80 V
      Max Input Voltage: 600 V
      Max DC Power: 5,400 W
      Max AC Power (5 Minutes): 3,600 W
      Surge AC Power (1 Second): 3,600 W
      Max DC Current: 19 A
      Max DC Inputs: 2
      Has DC Fuses: 0
      Connector: MC4
      Included Connectors: 1
      Euro Efficiency: 96.8 %
      Transformer: None
      MPPT Quantity : 1
      Has Integrated DC Switch: Yes
      Warranty: 5 years
      Solis

      Designed by world leading research and development team made by professors and specialists from 8 countries, Solis inverters are praised by clients and customs all over the world due to the high quality and reliability with the feature of ultra wide input voltage, precise MPPT algorithm, and Max. efficiency over 97%, which made Ginlong brand one of the most performance-cost inverters in the world.
