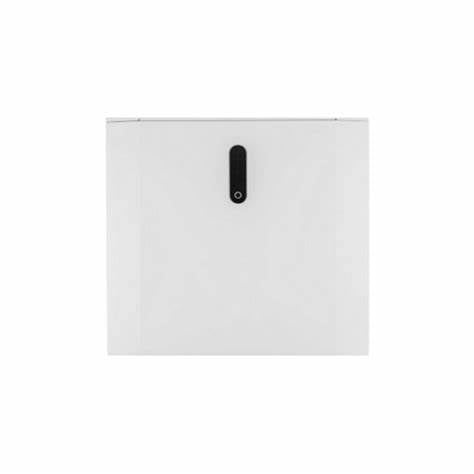

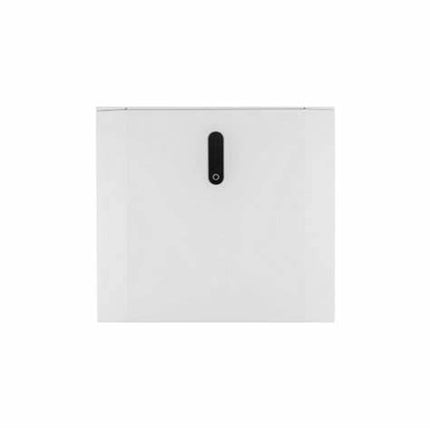

SolarEdge Home Battery 48V V2 - Low Voltage 4.6kWh module
BAT-05K48M0B-02 - Three Phase Inverter Connection Only
- DC coupled battery featuring superior overall system efficiency, generating more energy to store and use for on-grid and backup* power application.
- Scalable solution that enables to stack up multiple battery modules per inverter for increased capacity (up to 23 kWh).
- Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamlined logistics & operations.
- Solar, storage, EV charging, and smart devices all monitored and managed by a single app for optimized production, consumption, and backup* power.
- Includes enhanced safety features for battery protection.
- Simple plug and play installation, with automatic SetApp-based configuration
Weight: 54.7 kg
Battery Type: Lithium Ion
Nominal Energy: 4600 Wh
Depth of discharge: 90.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 4096 W
Maximum Discharge Rate (5 Minutes): 4096 W
Surge Discharge Rate (15 Seconds): 4096 W
Maximum Charge Rate (5 Minutes): 2825 W
