Breaking the 20% efficiency barrier
- Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 20.8 %.
A reliable investment
- Inclusive 25-year product warranty and 25-year linear performance warranty
Enduring high performance
- Long-term yield security with Anti LeTID Technology, Anti PID Technology2 , Hot-Spot Protect
Extreme weather rating
- High-tech aluminium alloy frame, certified for high snow (5400 Pa) and wind loads (3600 Pa)
Innovative all-weather technology
- Optimal yields, whatever the weather with excellent low-light and temperature behaviour
The most thorough testing programme in the industry
- Qcells is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new “Quality Controlled PV” of the independent certification institute TÜV Rheinland.

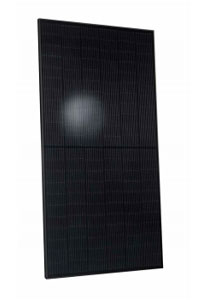

Supplier Part No:Q.PEAK-G11-M-BLK-PLUS-DUO-400
Weight:21.2 kg
Rated Power:400 W
MCS Reference:MCS PV0062/655
Length:1,692 mm
Width:1,134 mm
Depth:30 mm
VMPP:31.21 V
IMPP:12.82 A
Isc:13.41 A
Voc:37.18 V
Temp. Coefficient (Mpp):-0.34 %
Clamp position on panel:Long and short side
Connector Type:HQC4
Efficiency:20.8 %
Pallet Size:Oversized
