High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us.

Part No: JAM60S-21-365-MR-AB-SM Panels - Monocrystallines

Rating: 365W
Efficiency: 19.6%
Width: 1,052mm
Height: 1,769mm

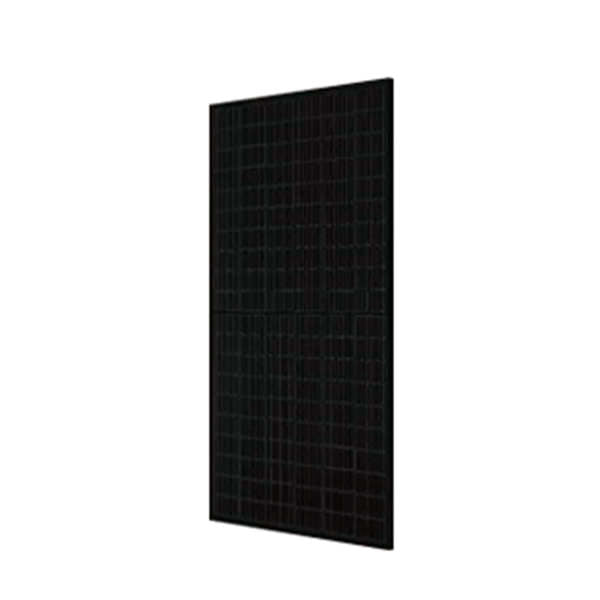

JA Solar Large Wafer PERC Multi-Busbar Half-Cell All Black Module

The half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

High output power
Less shading effect
Lower temperature coefficient
Better mechanical loading tolerance
Efficiency of 19.8%

Comes supplied with Staubli MC4 connectors and 1000mm output cables.

Awaiting additional documents for EU market. Installation manual does not include JAM60S-21 but the supplier confirmed that it's also applicable for it, even though it's not stated on the manual.

Supplier Part No: JAM60S21-365/MR
Weight: 20 kg
Rated Power: 365 W
MCS Reference: BABT 8515-224
Length: 1,769 mm
Width: 1,052 mm
Depth: 35 mm
VMPP: 33.96 V
IMPP: 10.75 A
Isc: 11.3 A
Voc: 41.13 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 19.6 %
Pallet Size: Oversized
