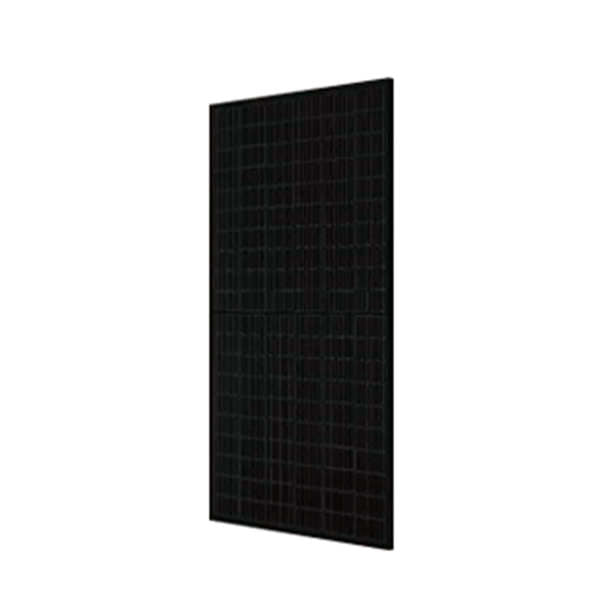

JA Solar multi-busbar Mono PERC Half-Cell Module.
The 365W solar panel is assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
- High output power
- Less shading effect
- Lower temperature coefficient
- Better mechanical loading tolerance
Comes with a 12-year product warrant and 25-year linear power output warranty.
Comes with MC4 connectors and 1200mm output cables.
Frame size has been reduced to 35mm from 30mm.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Supplier Part No: JAM60S-21-365-MR-AB-MC4-F30
Weight: 20.2 kg
Rated Power: 365 W
MCS Reference: BABT 8515-224
Length: 1,769 mm
Width: 1,052 mm
Depth: 30 mm
VMPP: 33.96 V
IMPP:10.75 A
Isc: 11.3 A
Voc: 41.13 V
Temp. Coefficient (Mpp):-0.35 %
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 19.6 %
Pallet Size: Oversized
