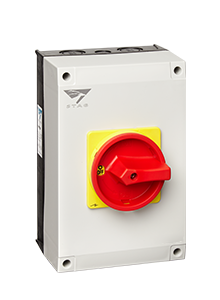

IMO Stag AC Isolator 4 Pole, 125 Amp

Description

Part No: IMO-IS4P125 Switches - AC Isolators

    AC Isolator Switch

    4 Pole Enclosed 125A AC Switch Isolator

    • IP65 Protection Rating (enclosure)
    • EN 60947-3 Compliant
    • Multiple Gland Knockouts
    • Lockable Rotary Handle
    • Flame Retardant
    • External Mounting Points
    • Additional Earth Connection
    • Interlocked Enclosure Lid

    Measurements

    • H - 240
    • W - 160
    • D - 120
    • D including handle - 165



    Supplier Part No:IS4P125

    Weight:1.34 kg

    Rated Power:28,750 W

    Poles:4

    Max Cable:35 mm2

    Max Voltage:690 V

    Rated Current:125 A

    Rated Voltage:440 V

    Rated Current:125 A

    Rated Voltage:230 V
