Part No: SOL-6.0-S6-DT-DC Inverters - Main Units
Rating: 6,000W
Phases: 1

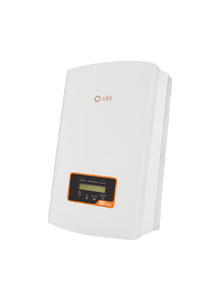

Solis S6 is the latest generation of residential inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.

Product Features
Maximum string input current 14A
Easy installation: Integrate with export power control function and DRM function.
Max. Efficiency over 97.7% European efficiency over 97.1%
Wide input voltage range for better generation and low startup
Dual MPPT design with precise MPPT algorithm
Export Limitation built in - Requires CT clamp (sold separately)
Integrated AFCI (DC arc-fault circuit protection)
Rated IP66
With built in DC switch.

Need monitoring? The Solis WIFI adaptor is compatible with all Solis inverters, click here for details.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Supplier Part No: S6-GR1P6K-DC
Weight: 12 kg
Rated Power: 6,000 W
Min PPT Voltage: 120 V
Max PPT Voltage: 520 V
DC Startup Voltage: 120 V
DC Shutdown Voltage: 90 V
Max Input Voltage: 600 V
Max DC Power: 9,000 W
Max AC Power (5 Minutes): 6,000 W
Surge AC Power (1 Second): 6,000 W
Max DC Current: 28 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.1 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
