High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us.

Part No: JAM60S-20-385-MR-MC4-SM Panels - Monocrystallines

Rating: 385W
Efficiency: 20.7%
Width: 1,052mm
Height: 1,769mm

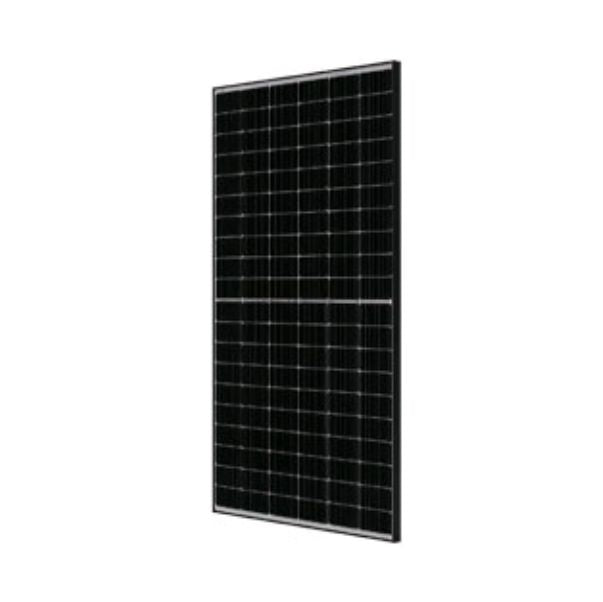

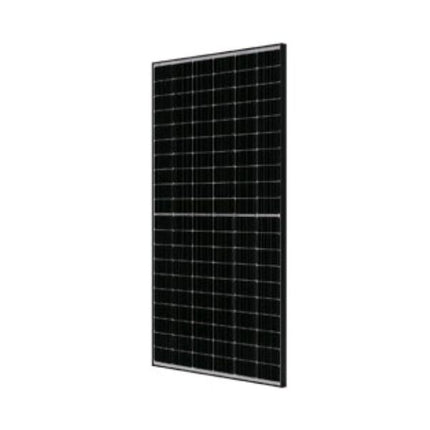

JA Solar Mono PERC Half-Cell Multi Bus Bar Module Short Frame.

This panel has a multi-busbar Half Cut Mono Cell technology with high efficiency passivated backside - PERC - (Passivated Emitter and Rear Cell) for increased efficiency and yield.

High output power
Low shading effect
Lower temperature coefficient
Better mechanical loading tolerance
20.4 Module efficiency
Product Warranty: 12 years
Performance Warranty: 25 years

This module has a Black Frame

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Supplier Part No: JAM60S20-385/MR
Weight: 20 kg
Rated Power: 385 W
MCS Reference: BABT 8515-208-R27-385W
Length: 1,769 mm
Width: 1,052 mm
Depth: 35 mm

VMPP:35.04 V
IMPP: 10.99 A
Isc: 11.53 A
Voc: 41.78 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 20.7 %
Pallet Size: Oversized
