Description
The Stiebel Eltron WPL 17 ACS Classic Pack 4 contains contains an 8kw heat pump and 180L cylinder without buffer along with all the equipment required for a comprehensive heat pump install.

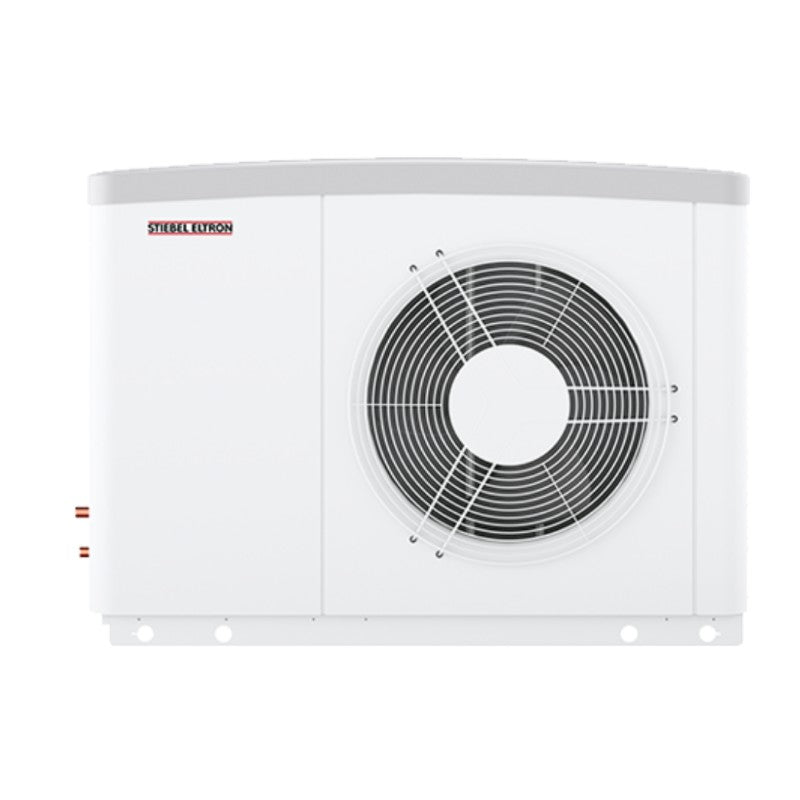

Heat Pump

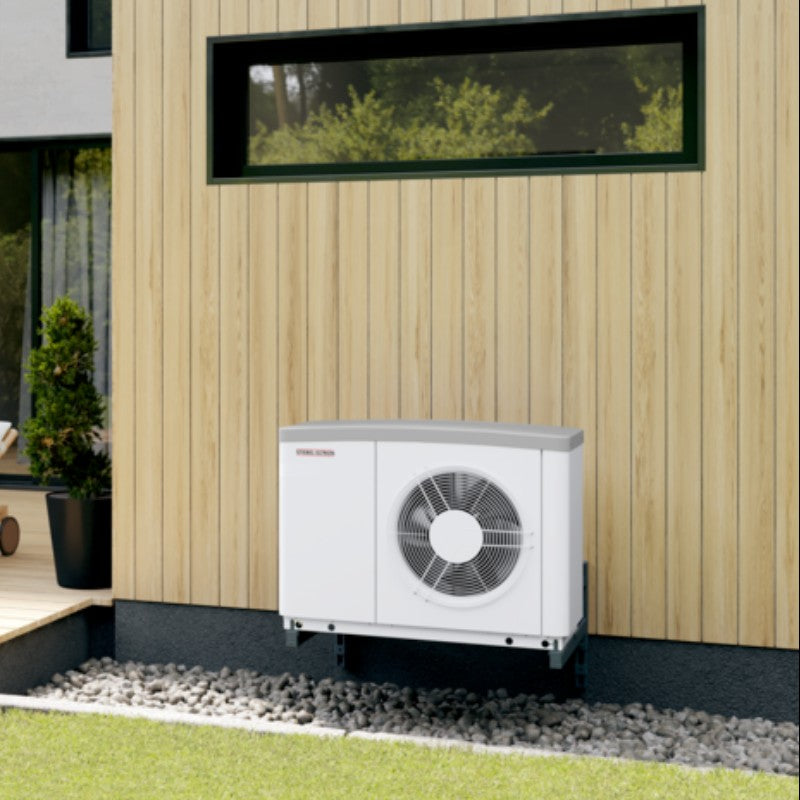

Thanks to its exceptionally quiet operation, the WPL 17 ACS heat pump can be sited even in densely built-up areas, especially as an outdoor installation requiring minimal valuable indoor space. Thanks to its high quality individual parts, these models reach an output level that enables flow temperatures of 60°C, and offer first class efficiency even in temperatures well below freezing.
Cylinder
All of the components of the HSBB 180 integral cylinder interact perfectly: they are exactly matched to one another, offer a long service life, save space, and provide a system with high levels of efficiency and reliability.
For the most comprehensive and up-to-date information on all the products in this pack, head to the Stiebel Eltron TOOL BOX and search for the different components.
Pack Information
| Product name |
WPL Classic Pack 4
|
| Product number |
204918
|
| Pack warranty |
7 years*
|

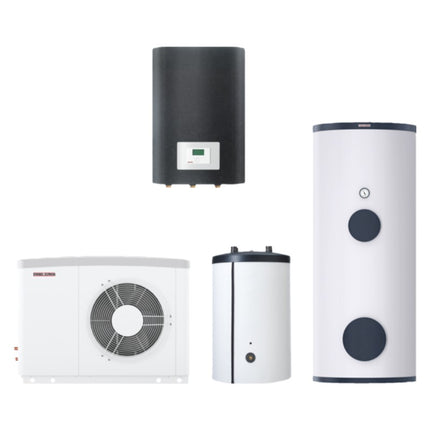

Kit Includes
|
| 1 |
8kW Heat pump |
WPL 17 ACS Classic
|
235922
|
| 1 |
300L Cylinder |
SBB 300-1 Plus GB
|
202923
|
| 1 |
100L buffer |
SBP 100 classic
|
235200
|
| 1 |
Thermostat |
FET
|
234723
|
| 1 |
Internet service gateway |
ISG web
|
229336
|
| 1 |
Pump |
UP 25 / 7.5 PCV
|
201620
|
| 1 |
Hydraulic module |
HMS Trend
|
233826
|
In addition to the pack, one of the following mounting options needs to be selected and purchased separately:
- Wall mounting bracket WK1, 238686
- Mounting feet SK-2, 236693
Pack Information
| Product name |
WPL 17 ACS Classic Pack 4
|
| Product number |
204918
|
| Pack warranty |
7 years*
|
Heat Pump Technical Information
| Product name |
WPL 17 ACS classic
|
| Product number |
235922
|
|
| MCS listed SCOPs |
|
| @35°C |
4.33
|
| @40°C |
4.03
|
| @45°C |
3.73
|
| @50°C |
3.36
|
| @55°C |
2.98
|
|
| Heating nominal capacity |
8.00kW |
| Heating output at A-7/W35 |
7.80kW |
| Compressor type |
Rotary piston
|
| Refrigerant Type |
R410A
|
| Refrigerant Volume |
2kg |
| Required flow rate |
10L/m |
|
| Heating up to |
60°c |
| Min operating temperature |
-20°c |
| Max operating temperature |
40°c |
| Electricity Supply |
220-240V |
| Sound Power Level |
57dBA |
|
| Height |
812mm |
| Width |
1152mm |
| Depth |
524mm |
| Net Weight |
91kg |
Cylinder Technical Information
| Product name |
SBB 300-1 Plus GB
|
| Product number |
202923 |
| Capacity |
315L |
| Weight |
111kg |
| Weight full |
426kg |
| Height |
1619mm |
| Diameter |
650mm |
|
| Buffer |
seperate, see below |
| Coil surface area |
2.00m2
|
ERP Band
|
B |
Buffer Technical Information
| Product name |
SBP 100 classic
|
| Product number |
235200 |
| Capacity |
100L |
| Weight |
21kg |
| Weight full |
121kg |
| Height |
877mm |
| Diameter |
510mm |
Standby energy consumption @ 65°C
|
50W |
|
*Standard 2 year warranty, extended to 7 for registered installers
