Description

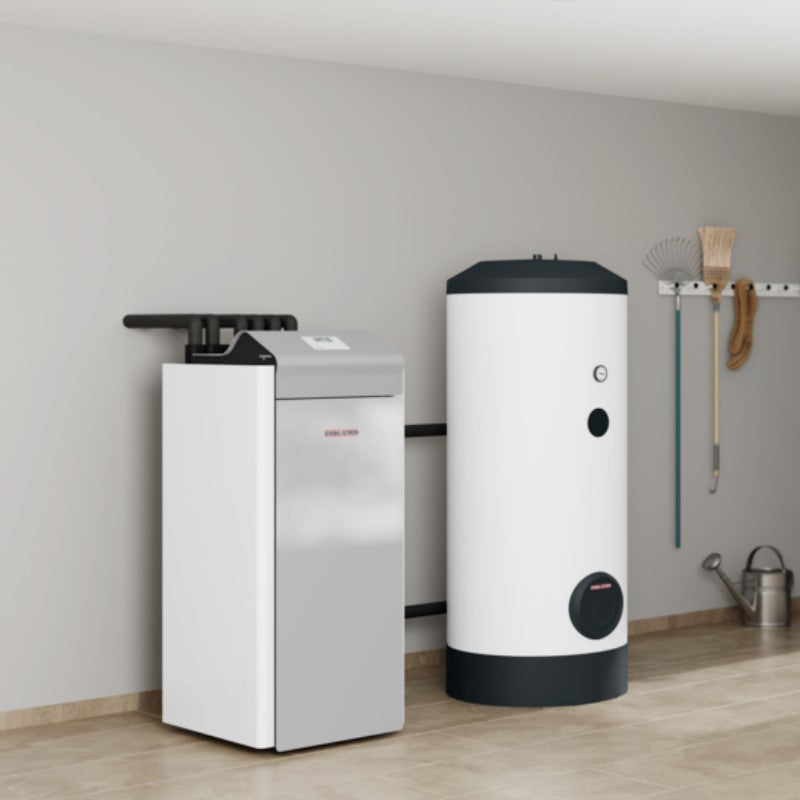

The Stiebel Eltron WPE-I 08 H 230 Premium Pack contains contains a 8kw ground source heat pump, a 290L cylinder and freestanding 100L buffer along with all the equipment required for a comprehensive heat pump install.
Heat Pump

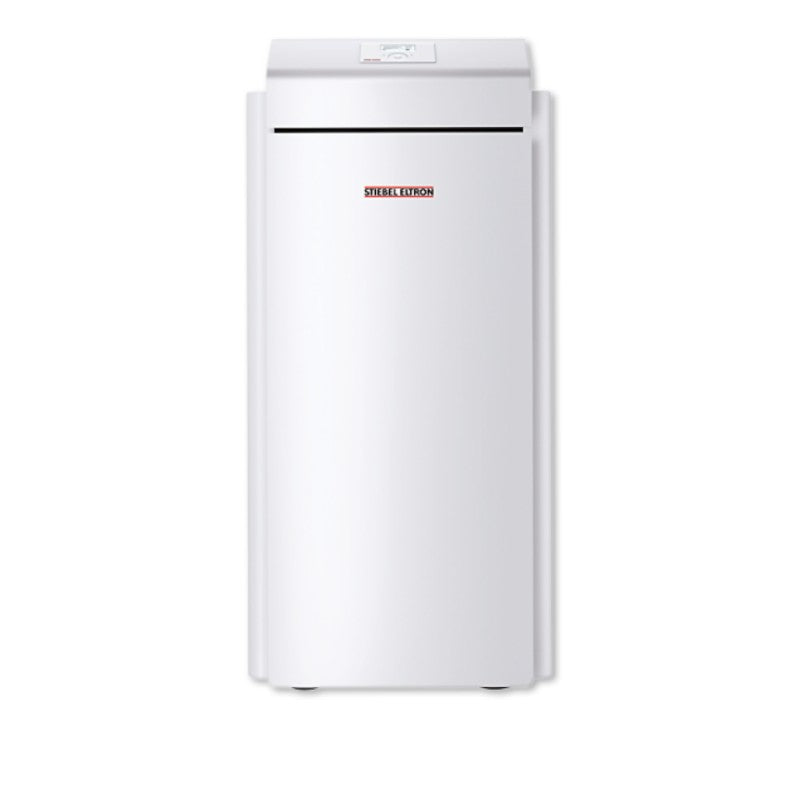

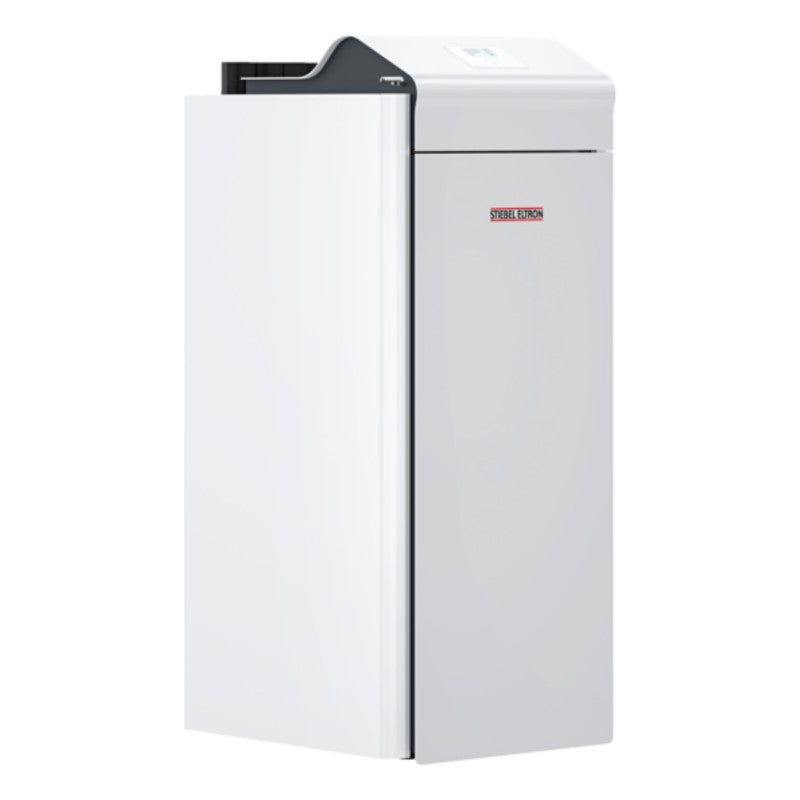

Made in Germany, Stiebel Eltron's exceptionally high quality and efficient WPE-I H Premium inverter geothermal heat pumps are neat, quiet and reliable. The device uses the heat from the ground for heating and hot water operation providing year-round constant heat output with high flow temperatures of up to 75°C. They are a future-proof and environmentally friendly refrigerant and contain the option for integration into the home network and control via a smartphone.
For the most comprehensive and up-to-date information on all the products in this pack, head to the Stiebel Eltron TOOLBOX and search for the different components.
Pack Information
| Product name |
WPE-I 08 H 230 Premium Pack
|
| Product number |
204402
|
| Pack warranty |
7 years*
|
Kit Includes
|
| 1 |
8kW Ground source
heat pump
|
WPE-I 08 H 230 Premium
|
238611
|
| 1 |
300L cylinder
|
SBB 302 WP (GB) Set
|
228945
|
| 1 |
100L buffer
|
SBP 100 classic
|
235200
|
| 1 |
Central heating pump |
WPKI-HK E
|
233602
|
| 2 |
Strainer
|
FS-WP 28
|
233512
|
| 1 |
Digital Thermostat
|
FET
|
234723
|
| 1 |
Internet service gateway
|
ISG web
|
229336
|
| 1 |
Bronze potable pump |
UP 25-60 B
|
056899
|
| 2 |
Temperature sensor
|
PT 1000
|
235996
|
| 1 |
Ground loop filling kit
|
WPSF
|
233307
|
Heat Pump Technical Information
| Product name |
WPE-I 08 H 230 Premium
|
| Product number |
238611
|
| Heating output at B0/W35 |
2,78 kW
|
| COP at B0/W35 |
4.67
|
| SCOP |
5.12
|
| Sound power level |
38 - 45 dB(A)
|
| Refrigerant |
R454C
|
|
| Height |
1369mm |
| Width |
598mm |
| Depth |
658mm |
| Net Weight |
180kg |
Cylinder Technical Information
| Product name |
SBB 302 WP (GB) Set
|
| Product number |
228945 |
| Capacity |
290L |
| Weight |
184kg |
| Weight full |
374kg |
| Height |
1770mm |
| Diameter |
700mm |
|
| Buffer |
seperate, see below |
| Coil surface area |
4.80m2
|
ERP Band
|
C |
Buffer Technical Information
| Product name |
SBP 100 classic
|
| Product number |
235200 |
| Capacity |
100L |
| Weight |
21kg |
| Weight full |
121kg |
| Height |
877mm |
| Diameter |
510mm |
Standby energy consumption @ 65°C
|
50W |
|
*Standard 2 year warranty, extended to 7 for registered installers
